Description:

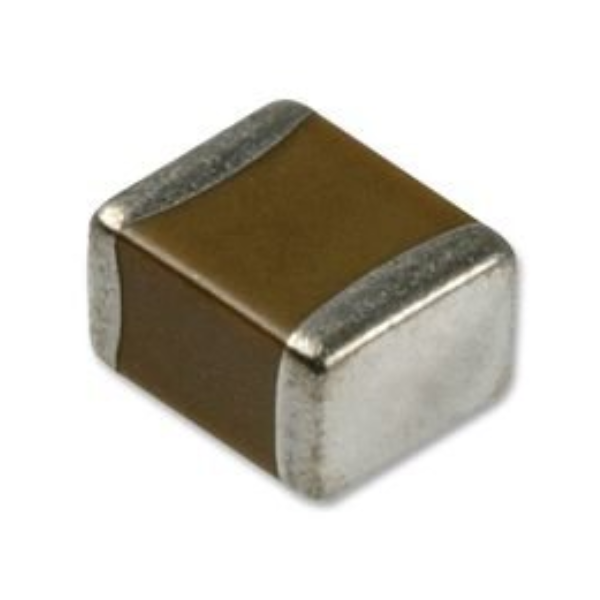

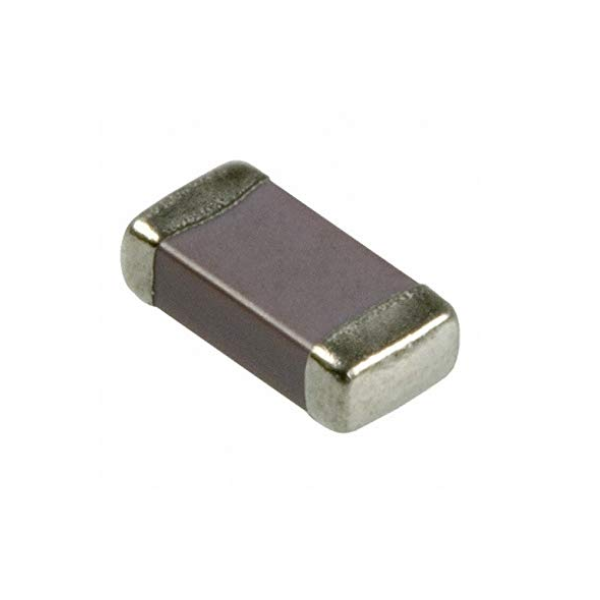

Enhance your electronic circuits with our high-quality 22pF X7R MLCC capacitor. This versatile component offers precise capacitance and reliable performance for a wide range of applications.
Key Features:
- Accurate Capacitance: 22pF capacitance for precise energy storage in your circuits.
- Temperature Stability: Operates reliably from -55°C to +85°C for demanding environments.
- Compact Design: 1206 package for efficient space utilization on PCBs.
- High Voltage Rating: Withstands up to 50V for reliable operation in high-voltage circuits.
- Versatile Applications: Ideal for high-voltage generation, AC mains filtering, high-frequency applications, and demanding environments like medical, military, and aerospace.
Technical Specifications:
- Dielectric: X7R
- Tolerance: 10%
- Capacitance: 22 pF
- Voltage Rating: 50V
- Case/Package: 1206
- Mount: Surface Mount
- Composition: Ceramic
- Minimum Operating Temperature: -55°C
- Maximum Operating Temperature: 85°C
Package Includes:
20 X AVX (22pf) 1206 +-5%
DATA SHEET AND USECASE
Key Features:
- Consumer Electronics: Such as tuners, television receivers, and cameras.
- Telecommunications: For signal coupling, tuning, and filtering in communication devices.
- Data Processing: Used in computer systems and peripherals for filtering and noise suppression.
- EMI Suppression: Employed in circuits to suppress electromagnetic interference, ensuring signal integrity.
- High-Frequency Applications: Suitable for RF circuits due to their stable capacitance and low loss characteristics.
