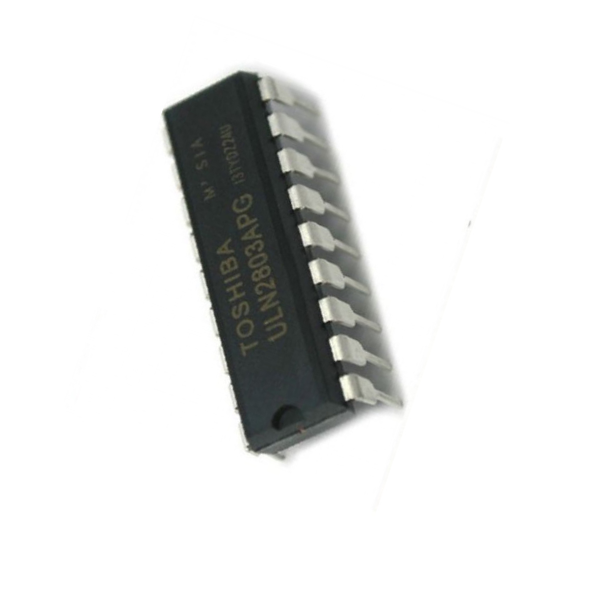

Darlington Driver 8-Channel ULN2803 DIP IC Pack 2

Power Up Your Projects with the ULN2803APG / AFWG Darlington Driver

Need a versatile and powerful driver for your high-voltage, high-current applications? Look no further than the ULN2803APG / AFWG Darlington Driver. This 8-channel driver is designed to handle demanding tasks like driving relays, solenoids, and LEDs.

Key Features:

• High Output Current: Deliver up to 500mA per channel, perfect for driving various loads.
• High Sustaining Voltage: With a minimum output voltage of 50V, handle even the most challenging applications.
• Built-in Clamp Diodes: Protect your circuitry from voltage spikes and back EMF.
• Versatile Inputs: Compatible with a wide range of logic families, ensuring seamless integration.
• Compact DIP-18 Pin Package: Ideal for easy installation and board layout.

Applications:

• Relay drivers
• Solenoid drivers
• LED drivers
• Motor controllers
• Power supplies

DATA SHEET AND USECASE

Key Features:

• Eight NPN Darlington pairs
• 500 mA output current per channel
• 50 V output voltage capability
• Integral clamp diodes for inductive load protection
• TTL and 5V CMOS logic compatibility
