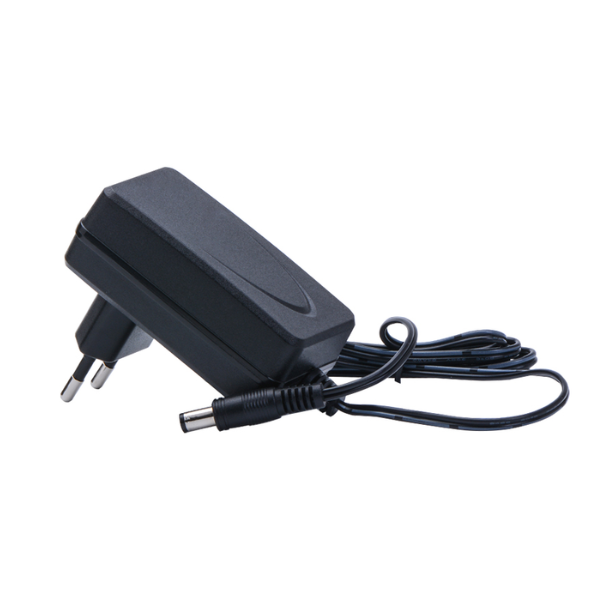

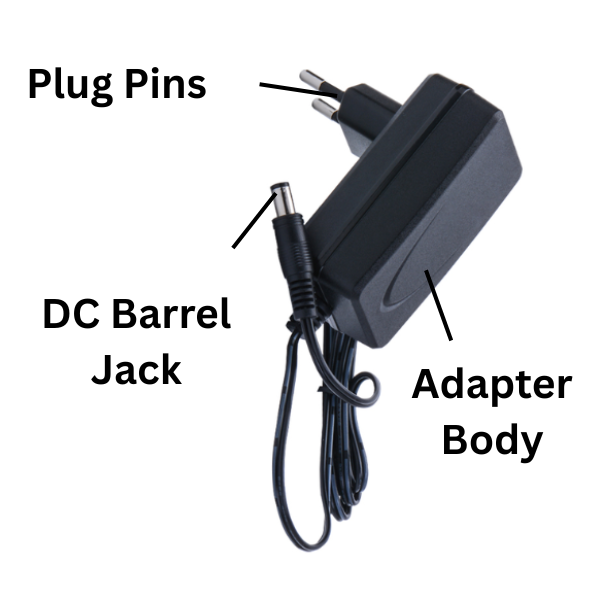

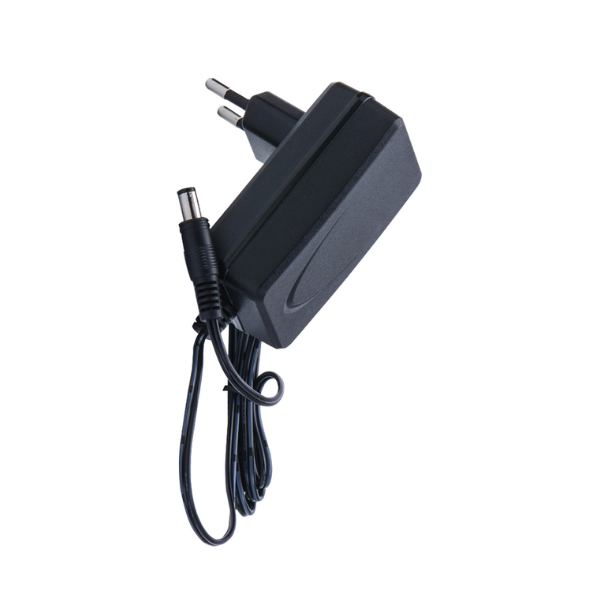

DC Power Supply Adapter 12V 1A Single Pin

Description:

A DC power supply adapter is a device that converts alternating current (AC) from a wall outlet to direct current (DC) at a specific voltage and amperage. This adapter is designed to provide a 12-volt output at 1 ampere, suitable for powering various electronic devices.

Key Features:

• Input Voltage: Typically 100-240V AC, allowing for worldwide use.
• Output Voltage: 12V DC
• Output Current: 1A (1000mA)
• Single Pin Connector: Features a single-pin output connector, commonly used for devices with a corresponding DC jack.
• Compact and Lightweight: Designed for portability and easy storage.
• Overload Protection: Built-in protection to prevent damage to the adapter and connected devices in case of overcurrent.
• Short Circuit Protection: Protects against short circuits that could occur if the positive and negative terminals are connected.
• Overvoltage Protection: Protects against voltage spikes that could damage connected devices.

Specifications:

• Input Voltage: 100-240V AC, 50/60Hz
• Output Voltage: 12V DC
• Output Current: 1A (1000mA)
• Connector Type: Single Pin
• Efficiency: Typically around 80-90%
• Ripple and Noise: Low ripple and noise levels for stable power output
• Dimensions and Weight: Varies depending on the specific model

DATA SHEET AND USECASE

Typical Specifications:

• Input Voltage: 100-240V AC, 50/60Hz
• Output Voltage: 12V DC
• Output Current: Up to 1A
• Power Rating: 12W
• Connector: 2.1 x 5.5mm barrel plug (center positive)
