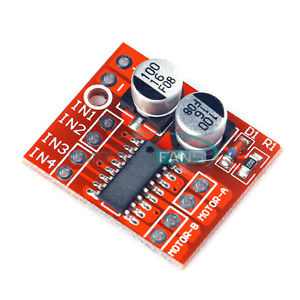

DC Stepper Motor Driver 2-Channel 1.5A PWM

1) The module supply voltage: 2V-10V.
2) Signal input voltage: 1.8-7V.
3) Single Opera:ting current: 1.5A
4) Peak current: up to 2.5A
5) The mounting hole diameter: 2mm

Description:

MX1508 Dual H Bridge DC PWM Stepper Motor Driver module is ideal for use in battery-powered smart cars, toy cars, and robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors and can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide a continuous current of 1.5A, peak current up to 2.5A, thermal protection, and can be automatically restored.

Note: This Product is available in two different variants of IC (MX1508 and JL AS208PO1429-25C4) with the same working we will ship it randomly.

Features:

• Dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motor.

• Single Operating current 1.5A

• peak current up to 2.5A, low standby current (less than 0.1uA).

• Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.

• Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about the motor stall.

• Ultra-small size.

• The mounting hole diameter: 2 mm

Package Includes:

• 1 x MX1508 Dual H Bridge DC PWM Stepper Motor Driver
