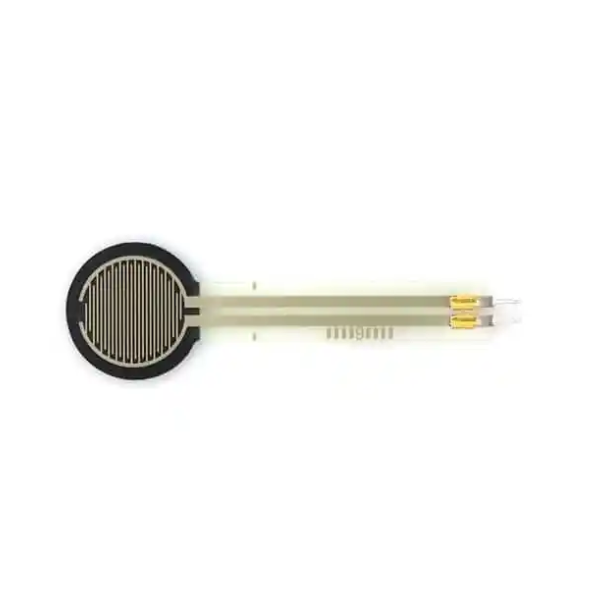

Force Sensitive Resistor 0.75

Force Sensitive Resistor 0.75

Elevate your electronic projects with our high-quality force-sensitive resistors (FSRs). These versatile sensors accurately detect and measure applied force, offering reliable performance for various applications.

Key Features:

• Sensing Area: Circular, 0.5 inch diameter
• Resistance Range: Varies from 1 M ohm (no pressure) to lower values with increasing force.
• Force Range: Detects forces from 100 grams to 10 kilograms.
• Compact Size: Overall dimensions of 2.375 inches length and 0.75 inches width.
• Easy Mounting: Features a peel-and-stick rubber backing for convenient installation.
• Breadboard Compatibility: Two pins with 0.1 inch pitch for easy integration with breadboards.

Applications:

• Pressure Sensing: Detect and measure force applied to objects.
• User Interfaces: Create interactive and responsive interfaces.
• Robotics: Enable robots to sense and interact with their environment.
• Prosthetics: Provide tactile feedback and control for prosthetic limbs.
• Experimental Prototyping: Explore various applications requiring force detection.

Benefits:

• Simple Setup: Easy to integrate into electronic circuits.
• Cost-Effective: Affordable solution for various projects.
• Durability: Built to withstand repeated use and pressure.
• Versatility: Suitable for a wide range of applications.

Specifications:

• Resistance: 1 Mohm (no pressure) to lower values with increasing force
• Force Range: 100 grams to 10 kilograms
• Dimensions: Overall length: 2.375 inches, Overall width: 0.75 inches, Sensing diameter: 0.5 inches
• Mounting: Peel-and-stick rubber backing

Conclusion:

The FSR is a valuable component for electronic projects that require force detection. Its simplicity, versatility, and affordability make it a popular choice for engineers, hobbyists, and researchers.

DATA SHEET AND USECASE

Key Specifications:

• Model: FSR402
• Sensing Area Diameter: 0.5 inches (12.7 mm)
• Overall Width: 0.75 inches (19.05 mm)
• Overall Length: 2.375 inches (60.33 mm)
• Force Sensitivity Range: Approximately 100 grams to 10 kilograms
• Resistance Range:

  • 1 MΩ when no pressure is applied

  • Decreases as force increases
