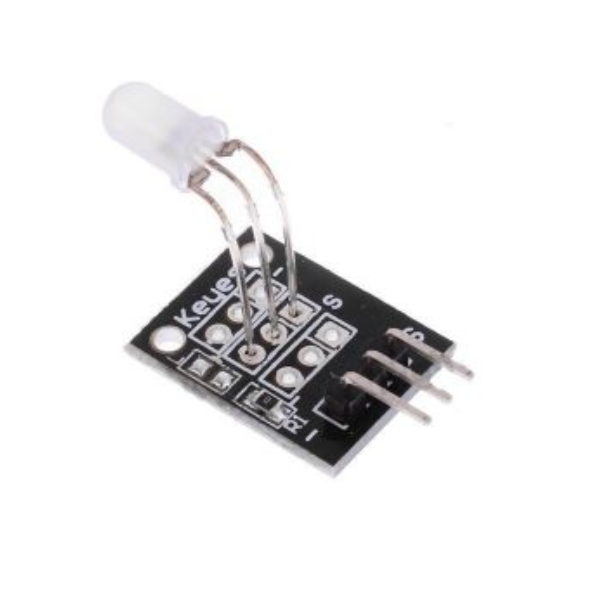

KY-011 Two Color Led Module

Description:

The KY-011 Two Color LED Module is a versatile electronic component that combines two different colored LEDs in a single package. It is commonly used in various electronic projects and applications to create different lighting effects and indicators.

Key Features:

• Two-Color LED: Contains two LEDs of different colors, typically red and green.
• Common Anode Configuration: Simplifies the wiring process by connecting all anodes together.
• Easy-to-Use: Simple to integrate into electronic projects and control using appropriate software or hardware.
• Versatile Applications: Suitable for various applications, including LED lighting, decorations, signage, and electronic projects.

Applications:

• Indicators:
  • System status indicators (e.g., power on/off, error conditions)
  • Alarm systems
  • Traffic lights
  • Game consoles
• Educational Projects:
  • Introduction to electronics and LEDs
  • Logic gates and Boolean algebra demonstrations
  • Simple circuits and programming exercises
• Hobbyist Projects:
  • Custom lighting effects
  • Decorative lighting
  • DIY gadgets and electronics

Specifications:

• Type: Two-color LED
• Operating Voltage: 2.0V - 2.5V (for each LED)
• Operating Current: 20mA (per LED)
• Common Cathode: Both LEDs share a common ground connection
• Size: Small and compact, easy to integrate into projects
• Compatibility: Compatible with various microcontrollers like Arduino, Raspberry Pi, and others

DATA SHEET AND USECASE

Technical Specifications:

• Forward Voltage: 2.0V - 2.5V
• Forward Current: 20mA
• LED Diameter: 3mm
• Colors Emitted: Red and Green
• Beam Angle: 150°
• Wavelength: Red: 644nm, Green: 571nm
• Luminous Intensity: Red: 40-80 mcd, Green: 20-40 mcd
