Laser Diode Module 3v 5mw with Copper Head -Red

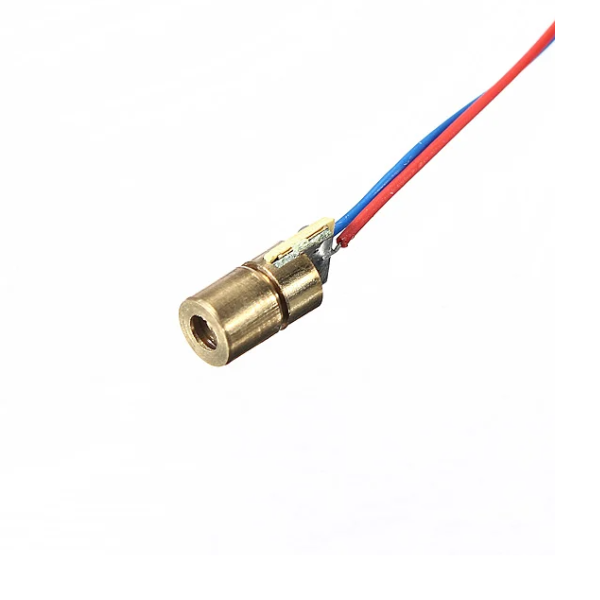

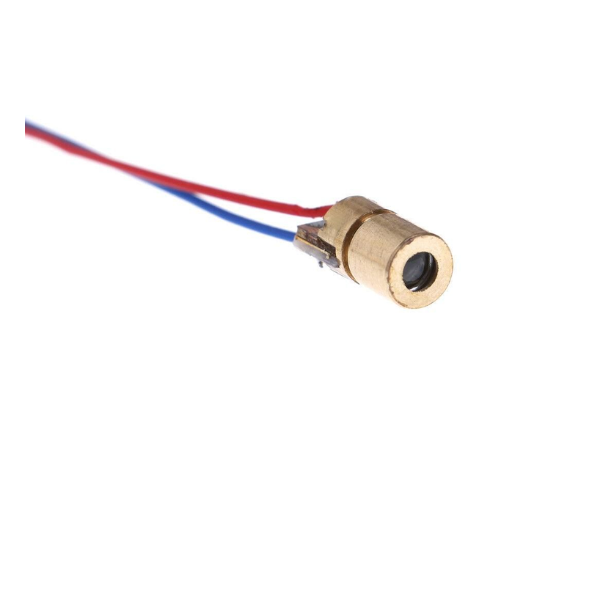

DSM Online 3V 5mW 650nm Laser Diode Module

Illuminate your projects with the DSM Online 3V 5mW 650nm Laser Diode Module. This compact and versatile component is perfect for a wide range of applications requiring a reliable and efficient red laser beam.

Key Features:

• High-Power Output: Emits a powerful 5mW laser beam for clear visibility.
• Compact Design: Easy to integrate into your projects.
• Long Lifespan: Operates for over 2000 hours.
• Wide Operating Temperature Range: Functions reliably in various environments.
• Versatile Applications: Ideal for laser pointers, alignment tools, and DIY projects.

Specifications:

• Max Light Power: 5mW
• Operating Voltage: 3VDC
• Laser Wavelength: 650nm
• Max Operating Current: 25mA
• Working Life: More than 2000 hours
• Operating Temperature: -10°C to +5°C
• Dimensions: Diameter 6mm, Length 13mm
• Laser Output Type: Dot facula (continuous output)

DATA SHEET AND USECASE

Typical Specifications:

• Lens: Optical glass​
• Output Power: ≤5mW​
• Housing Material: Copper​
• Operating Voltage: 3V DC​
• Operating Current: <40mA​
• Wavelength: 650nm (red light)​
• Operating Temperature: -10°C to +40°C​
• Spot Mode: Dot facula, continuous output​
• Dimensions: 14mm (Length) x 6mm (Diameter)​
