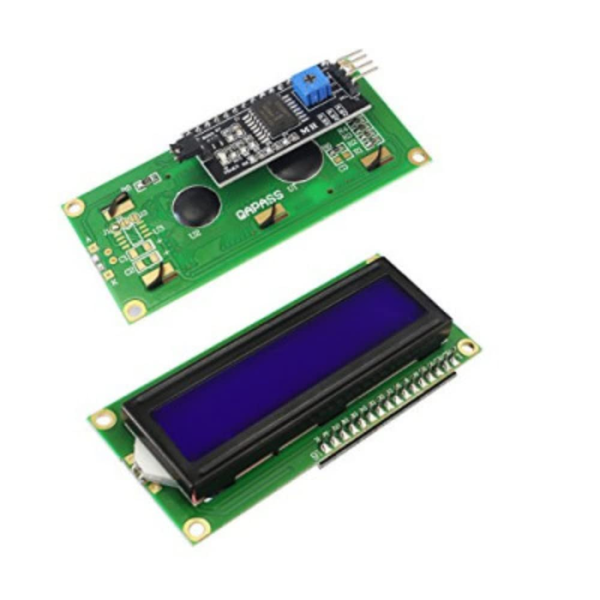

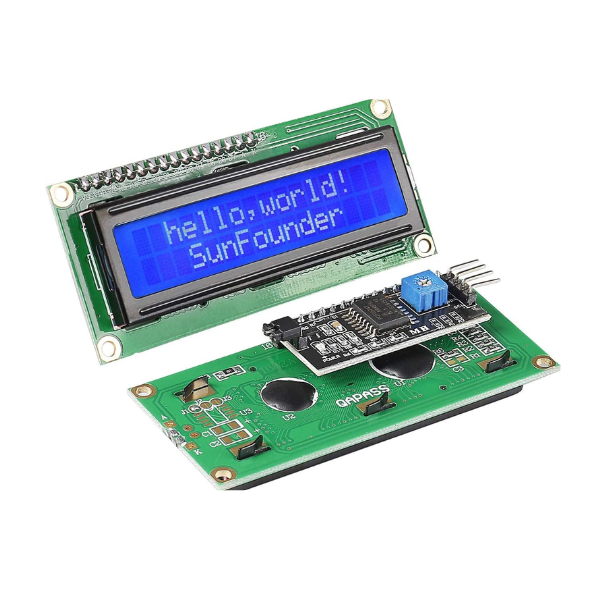

LCD1602 Parallel Blue in white LCD Display with IIC/I2C Interface (Soldred)

Description:-

This is LCD 1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast white text upon a blue background/backlight.

This is great blue backlight LCD display. It is fantastic for Arduino based project. This LCD1602 LCD Display is very easy to interface with Arduino or Other Microcontrollers.

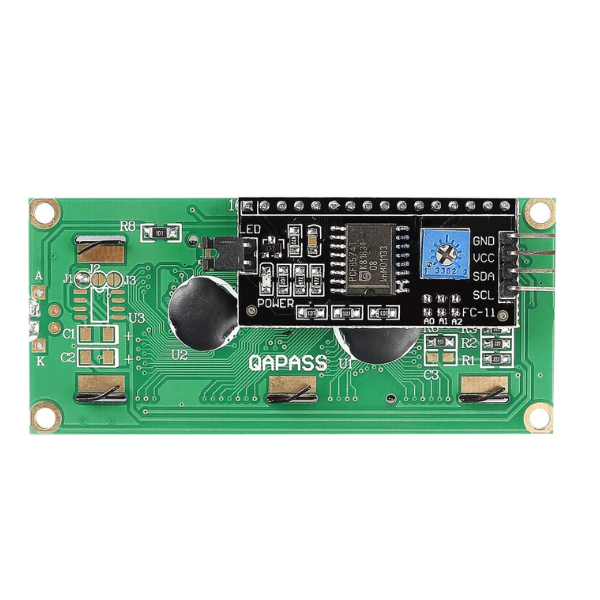

This display overcomes the drawback of LCD 1602 Parallel LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

Specifications & Features :-

Arduino IIC/I2C interface was developed to reduce the IO port usage on Arduino board

I2C adapter allows flexibility in connections

I2C Reduces the overall wirings.

16 characters wide, 2 rows

White text on the Blue background

Single LED backlight included can be dimmed easily with a resistor or PWM.

Interface: I2C

Interface Address: 0x27

Character Color: White

Backlight: Blue

Supply voltage: 5V

Package Includes:-

1 x 1602 (16x2) LCD Display with I2C/IIC interface - Blue Backlight
