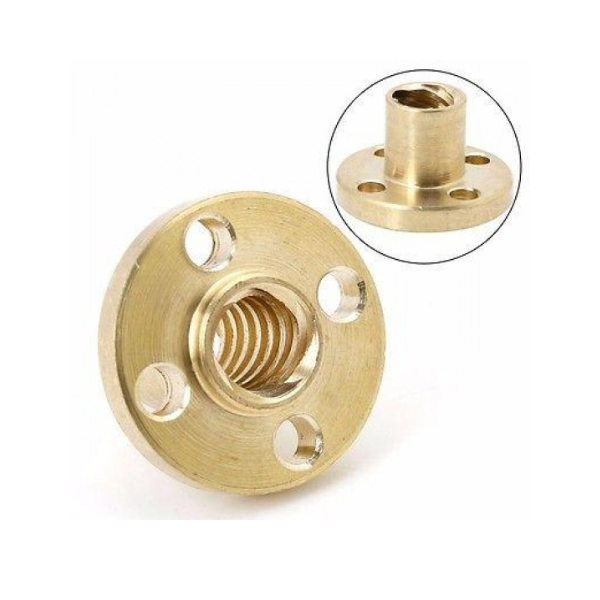

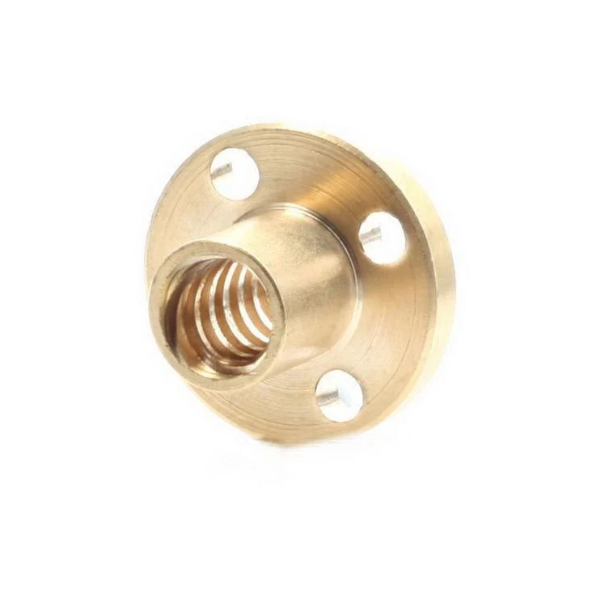

Lead Copper Nut-8mm

8mm Lead Copper Nut for Precise Linear Motion

Experience smooth and reliable linear movement with this high-quality lead screw nut.

Designed for use with 8mm lead screws, this nut is ideal for applications requiring precise linear motion. Its durable brass construction and easy installation make it a versatile choice for various projects.

Key Features:

• 8mm Diameter: Compatible with 8mm lead screws for accurate movement.
• 8mm Lead: Ensures precise linear travel.
• Brass Construction: Offers durability and corrosion resistance.
• Easy Installation: Simple and straightforward setup.
• Versatile Applications: Suitable for 3D printers, CNC machines, and other linear motion applications.

Specifications:

• Material: Brass
• Diameter: 8mm
• Lead: 8mm

Choose this lead copper nut for reliable and efficient linear motion in your projects.

DATA SHEET AND USECASE

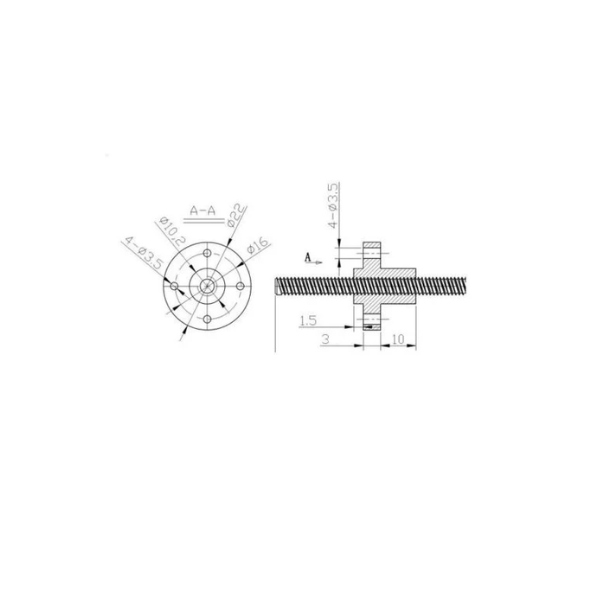

Technical Specifications:

• Material: Brass/Copper
• Inner Diameter: 8mm
• Thread Profile: TR8×8
• Lead: 8mm (the linear distance traveled per screw revolution)
• Pitch: 2mm (distance between adjacent thread peaks)
• Starts: 4 (number of thread starts)
• Dimensions: Approximately 24mm (length) × 12.5mm (width) × 10.5mm (height)
