Zero PCB: Your Versatile Prototyping Partner

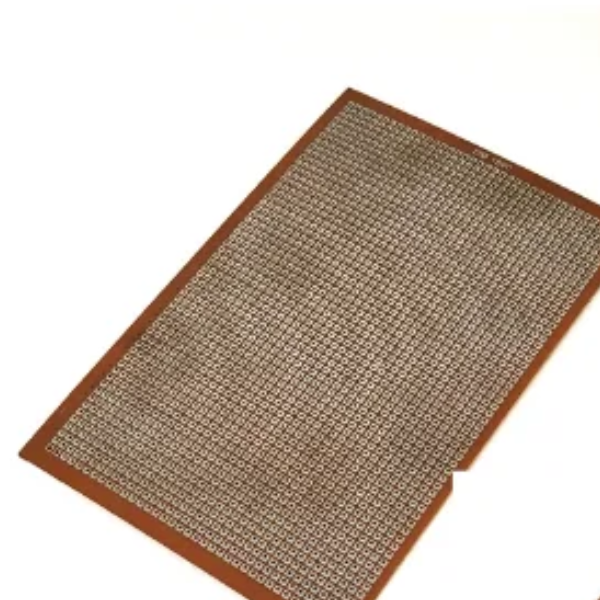

Need a flexible and affordable platform for your electronic projects? Look no further than a Zero PCB. This versatile printed circuit board, also known as perf-board or DOT PCB, is a thin copper sheet with holes arranged in a grid pattern. Each hole is surrounded by a copper pad, allowing you to easily solder components directly to the board.
Key Features:
- Universal Compatibility: Ideal for a wide range of electronic projects, from simple circuits to complex prototypes.
- Easy to Use: Solder components directly to the pre-drilled holes without the need for complex layouts.
- Cost-Effective: A budget-friendly option for prototyping and testing your designs.
Applications:
- Hobbyist Projects: Create your own electronic gadgets, toys, and experiments.
- Educational Purposes: Learn about electronics and circuit design in a hands-on way.
- Rapid Prototyping: Quickly test and iterate on your ideas before committing to a final design.
DATA SHEET AND USECASE
Key Specifications:
- Dimensions: 2 inches x 3 inches (5 cm x 7.5 cm)
- Hole Pitch: Standard 2.54 mm (0.1-inch) spacing between holes
- Hole Count: Typically 416 holes per board
- Material: High-quality phenolic laminate (FR2)
- Thickness: Approximately 1.4 mm
- Copper Layer: Single-sided copper, ideal for easy soldering
