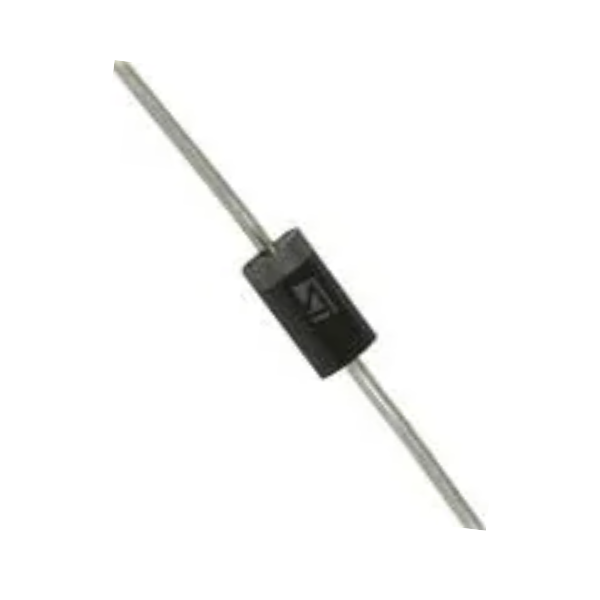

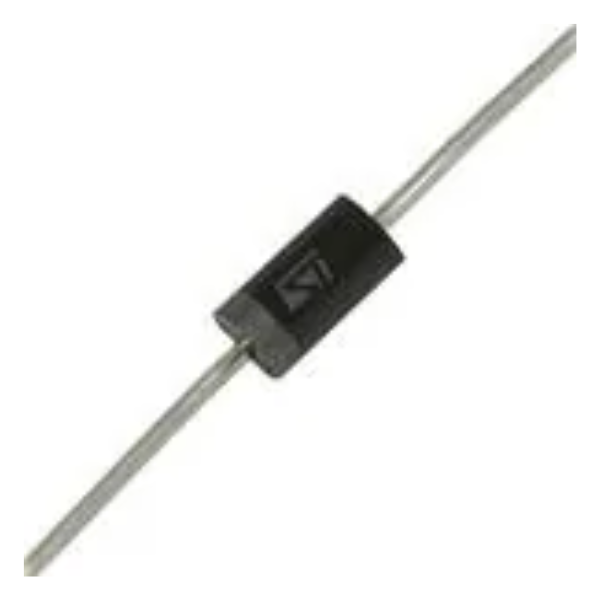

P6KE180A TVS Bidirectional Diode Through-Hole Pack 20

 P6KE180A TVS Bidirectional Diode (20-Pack)

Protect your sensitive electronic circuits from transient voltage surges with the  P6KE180A TVS Bidirectional Diode. This high-performance component is designed to provide reliable overvoltage protection for a wide range of applications.

Key Features:

• Bidirectional Protection: Protects against both positive and negative voltage transients.
• High Peak Pulse Power: 600W peak pulse power capability for robust protection.
• Fast Response Time: Clamps voltage surges quickly to minimize damage.
• Low Clamping Voltage: Provides effective protection without compromising circuit performance.
• Compact Design: Through-hole mounting for easy integration into your circuit board.

Applications:

• Industrial control
• Computer systems
• VCC bus protection
• Telecom equipment
• Consumer electronics
• I/O interface protection
• Sensitive circuit protection

Specifications:

• Package: DO-214AC
• Stand-Off Voltage: 180V
• Mounting Type: Through-hole
• Peak Pulse Power: 600W (10/1000µs)
• Clamping Voltage: Typically 5.8V(at 1A)
• Junction Temperature: -55°C to +175°C
• Maximum Peak Pulse Current: 20A (10/1000µs)

DATA SHEET AND USECASE

Key Specifications:

• Reverse Standoff Voltage (V_R): 154V
• Operating Temperature Range: -55°C to +175°C
• Peak Pulse Power Dissipation: 600W (10/1000µs waveform)​
• Clamping Voltage (V_C): 246V at a peak pulse current of 2.5A
• Breakdown Voltage (V_BR): 171V (minimum) to 189V (maximum)​​
• Response Time: Typically less than 1 picosecond from 0V to breakdown voltage​
