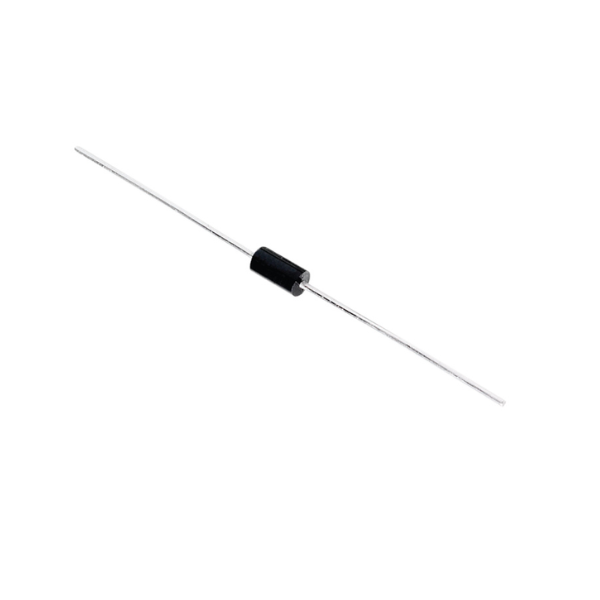

P6KE51CA TVS Bidirectional Diode Through-Hole(DO-15) Pack 10

P6KE51CA TVS Bidirectional Diode (10-Pack)

Protect your sensitive electronic circuits from voltage surges with the P6KE51CA TVS Bidirectional Diode. This high-performance component is designed to provide reliable overvoltage protection for a wide range of applications.

Key Features:

• Compact Design: Ideal for space-constrained applications.
• High Power Dissipation: Handles high-energy surges without failure.
• Fast Response Time: Clamps voltage surges quickly to minimize damage.
• Durable Plastic Storage Box: Keeps your diodes organized and protected.
• Stand-Off Voltage: 51V for effective protection against moderate-level transients.

Applications:

• Industrial control
• Computer systems
• VCC bus protection
• Telecom equipment
• Consumer electronics
• I/O interface protection
• Sensitive circuit protection

Specifications:

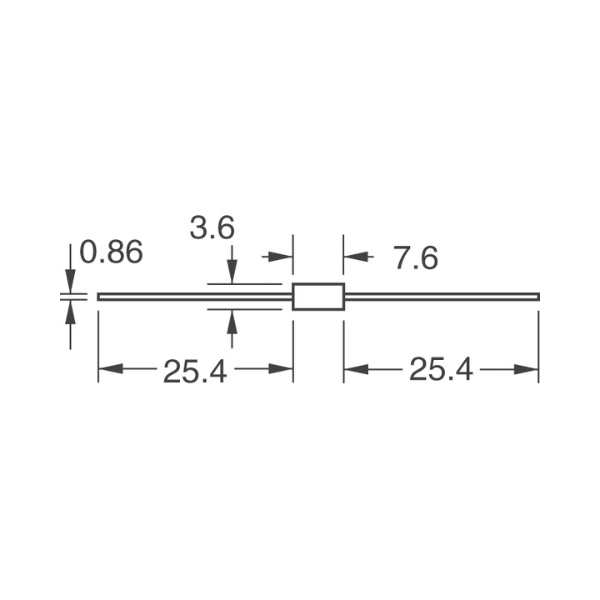

• Package: DO-15
• Stand-Off Voltage: 51V
• Mounting Type: Through Hole
• Peak Pulse Power: 600W (10/1000µs)
• Junction Temperature: -55°C to +175°C
• Clamping Voltage: Typically 32.1V (at 1A)
• Maximum Peak Pulse Current: 20A (10/1000µs)

DATA SHEET AND USECASE

Key Specifications:

• Operating Temperature Range: -55°C to 175°C
• Reverse Standoff Voltage (V_R): 43.6V​
• Breakdown Voltage (V_BR): 48.5V to 53.6V​
• Peak Pulse Power Dissipation: 600W (10/1000µs waveform)​
• Response Time: Typically less than 1 picosecond from 0V to breakdown voltage​
• Maximum Clamping Voltage (V_C): 70.1V at a peak pulse current of 8.7A​
