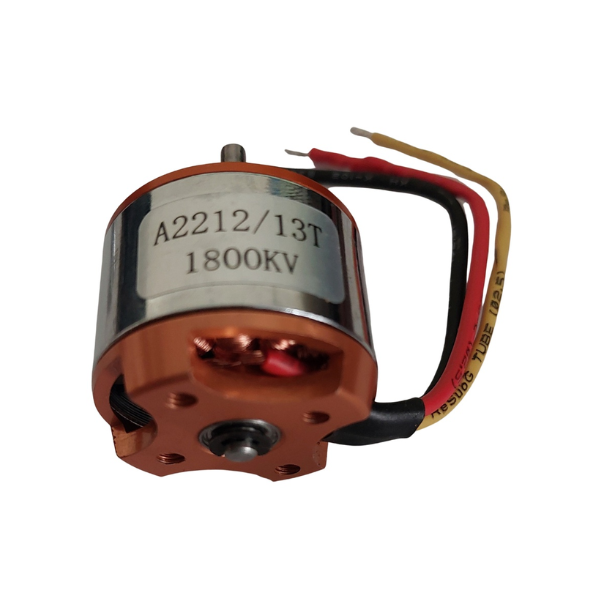

RC Brushless Motor 2212 1800KV

Power Up Your Quadcopter with the A2212 Brushless Motor

Experience unmatched performance and efficiency with our A2212 brushless motor, specifically designed for quadcopters and multi-rotors. This powerful motor delivers exceptional power output, making it ideal for medium-sized quadcopters with 8-10 inch propellers.

Key Features:

• High Performance: Delivers exceptional power and efficiency for your quadcopter.
• Versatile Applications: Perfect for medium-sized quadcopters with 8-10 inch propellers.
• Durable Construction: Built to withstand the demands of flight.
• Easy Integration: Compatible with our F450 quadcopter frame and 30A ESCs.

Specifications:

• Model: A2212
• KV: 1800
• Max Efficiency: 80%
• Max Efficiency Current: 4-10A (>75%)
• Current Capacity: 12A/60s
• No Load Current @ 10V: 0.5A
• No. Of Cells: 2-3 Li-Poly
• Motor Dimensions: 27.5 x 30mm
• Max Thrust: 1200 Gms

Elevate your quadcopter's performance with the A2212 brushless motor.

DATA SHEET AND USECASE

Specifications:

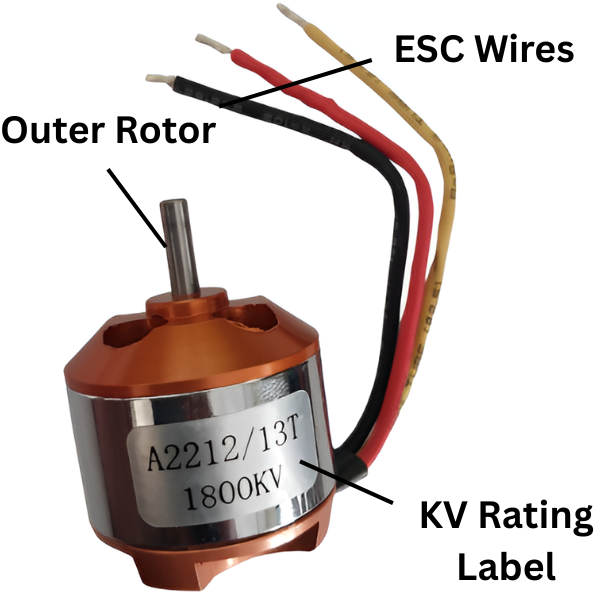

• Motor Type: Brushless (Outrunner)
• Size: 2212 (22mm diameter, 12mm length)
• KV Rating: 1800KV (RPM per volt)
• Max Voltage: 11.1V (3S LiPo battery)
• Max Current: Typically around 20-25A
• Max Power: 200-250W (depending on the current)
• Propeller Size: Recommended 9-10 inch props for optimal performance
• Weight: Around 70-80 grams
• Shaft Diameter: 3.17mm

Common Uses:

• Drones: Often used for medium-sized drones, particularly quadcopters.
• RC Airplanes: Can be used in various RC planes, especially those with a moderate weight and medium to high-speed requirements.
• RC Helicopters: Sometimes used in helicopters for added power and efficiency.
• Electric Vehicle Systems: In some small electric vehicles, such as e-bikes or electric cars (although larger motors are generally preferred).
