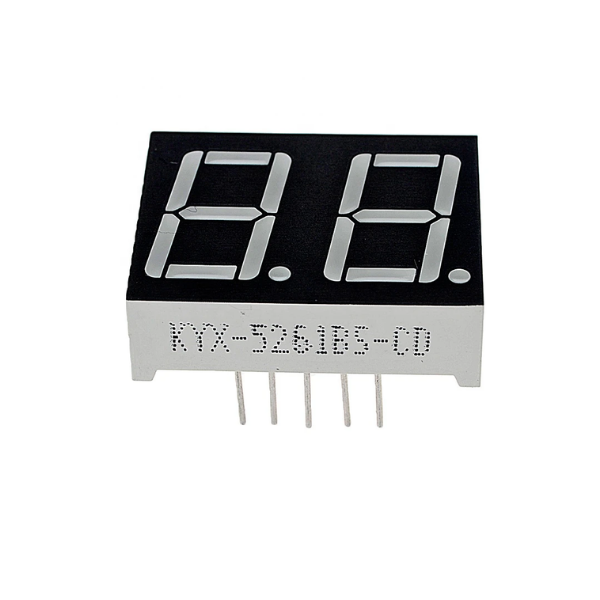

Red 0.56inch 2 Digit 7 Segment LED Display Digital Tube - Common Anode pack 10

The Red 0.56inch 2 Digit 7 Segment LED Display Digital Tube - Common Cathode (CC) is a versatile electronic component used to display numerical information. It features two 7-segment red LEDs arranged in a row, each displaying digits from 0 to 9. The common cathode configuration simplifies the wiring process.

Key Features:

• 2-Digit Display: Displays numbers from 0 to 99.
• 0.56 Inch Character Height: Provides good visibility and readability.
• Red LED Illumination: Emits bright red light for clear display in various lighting conditions.
• Common Cathode (CC) Configuration: Simplifies wiring by connecting all cathodes together.
• High Brightness: Offers high brightness and luminous intensity, ensuring visibility in different lighting conditions.
• Durable Construction: Designed for long-lasting performance and reliability.
• Versatile Applications: Suitable for a wide range of applications, including digital clocks, counters, meters, and electronic devices.

DATA SHEET AND USECASE

Key Specifications:

• Digit Height: 0.56 inches (14.2 mm)
• Configuration: Common Anode
• Color: Red
• Typical Forward Voltage: Approximately 2.1V per segment
• Forward Current: Typically 20 mA per segment
• Wavelength: Around 640 nm

Applications:

These displays are widely used in various electronic devices, including:

• Digital clocks
• Electronic meters
• Basic calculators
• Counters
• Timers
• Other devices requiring numerical displays
