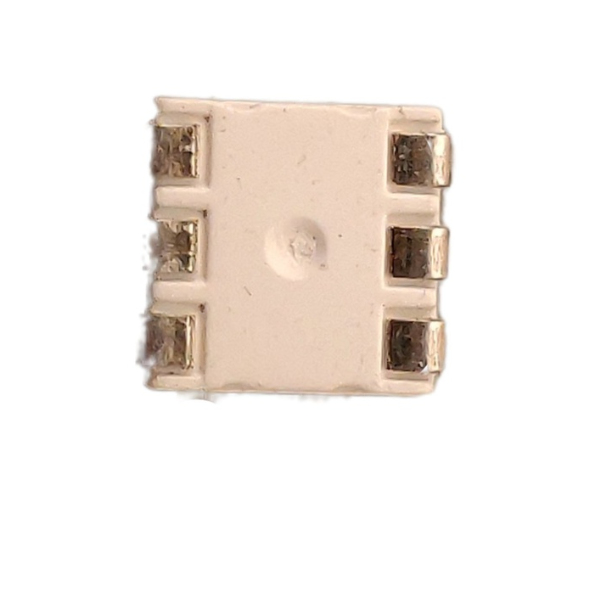

RGB LED SMD 5050

The RGB LED SMD 5050 Pack 10 is a package of 10 high-quality surface-mount light-emitting diodes (LEDs) in the 5050 package. These LEDs offer a wide range of colors and are commonly used in various lighting applications.

Key Features:

• 5050 SMD Package: The small size and surface mount design make them easy to integrate into various electronic circuits and devices.
• RGB Color Mixing: Can produce a wide range of colors by combining different intensities of red, green, and blue light.
• High Brightness: Offers high brightness and luminous intensity, ensuring visibility in different lighting conditions.
• Long Lifespan: Designed for extended service life, providing reliable performance over time.
• Wide Applications: Suitable for various applications, including LED strips, lamps, fixtures, and electronic signage.

DATA SHEET AND USECASE

Key Specification:

• Package Dimensions: 5.0 mm (L) x 5.0 mm (W) x 1.5 mm (H)
• Chip Configuration: Three separate LED chips (RGB) in one package
• Viewing Angle: Approximately 120 degrees
• Operating Voltage:
  • Red: 2.0V to 2.2V
  • Green: 3.0V to 3.2V
  • Blue: 3.0V to 3.2V
• Operating Current: Typically 50 mA per chip
• Power Consumption: Approximately 0.5W per LED
• Luminous Intensity:
  • Red: 1800–2000 mcd
  • Green: 5000–6000 mcd
  • Blue: 1000–1500 mcd
• Operating Temperature: -40°C to +100°C
• Storage Temperature: -40°C to +100°C
