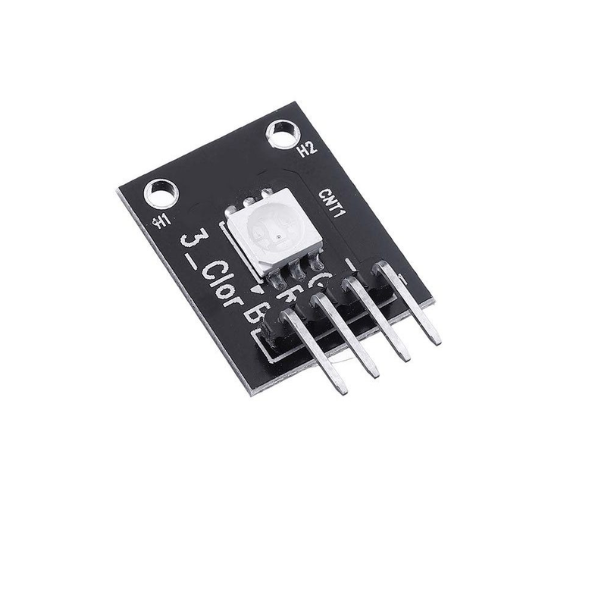

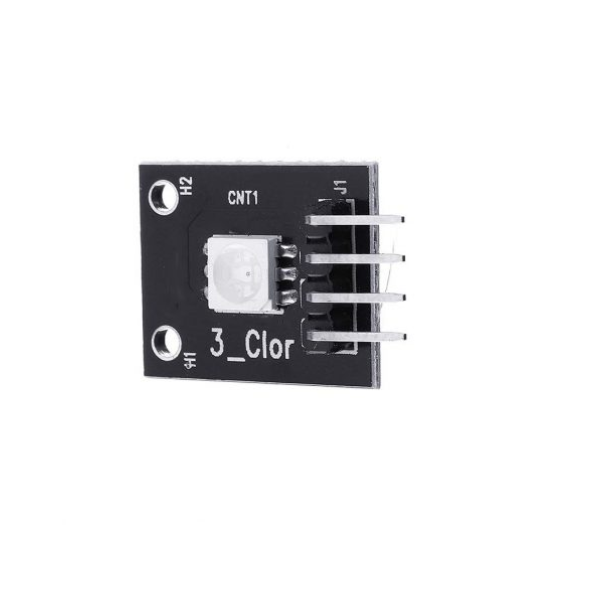

RGB module / LED module / full-color LED module / tri-color LED Pack 2

The RGB LED Module (also known as Full-Color LED Module or Tri-Color LED Module) is a versatile electronic component that combines red, green, and blue LEDs in a single package. This allows for precise control over the color and brightness of the emitted light, enabling a wide range of applications.

Key Features:

• RGB Color Mixing: Can produce a variety of colors by combining different intensities of red, green, and blue light.
• High Brightness: Offers high brightness and luminous intensity, ensuring visibility in different lighting conditions.
• Long Lifespan: Designed for extended service life, providing reliable performance over time.
• Versatile Applications: Suitable for various applications, including LED lighting, decorations, signage, and electronic projects.
• Easy-to-Use: Simple to integrate into electronic circuits and control using appropriate software or hardware.

DATA SHEET AND USECASE

Typical Specifications:

• Operating Voltage: 5V
• Forward Voltage:
  • Red: 1.8V – 2.4V
  • Green: 2.8V – 3.6V
  • Blue: 2.8V – 3.6V
• Forward Current: 20mA – 30mA
• Operating Temperature: -25°C to 85°C
• Dimensions: Approximately 18.5mm x 15mm
