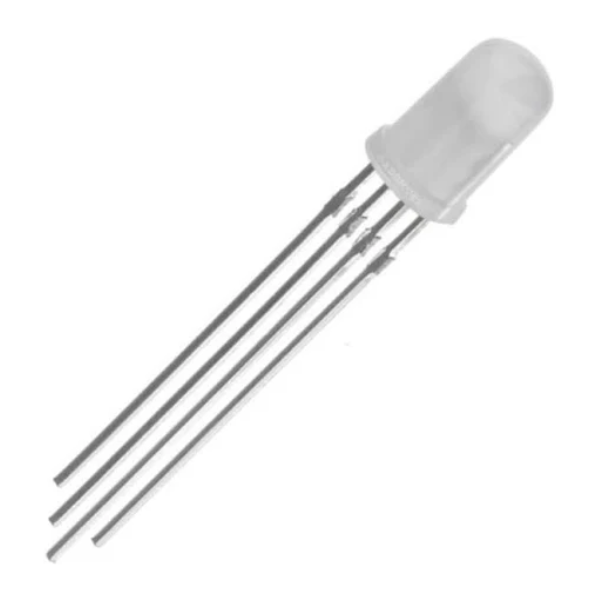

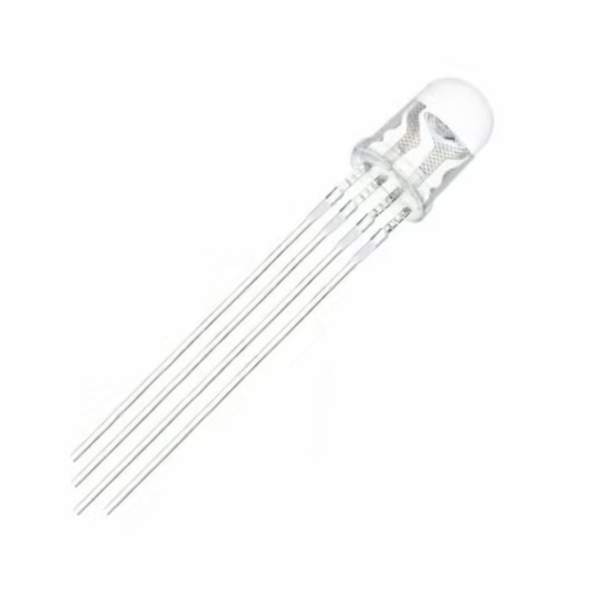

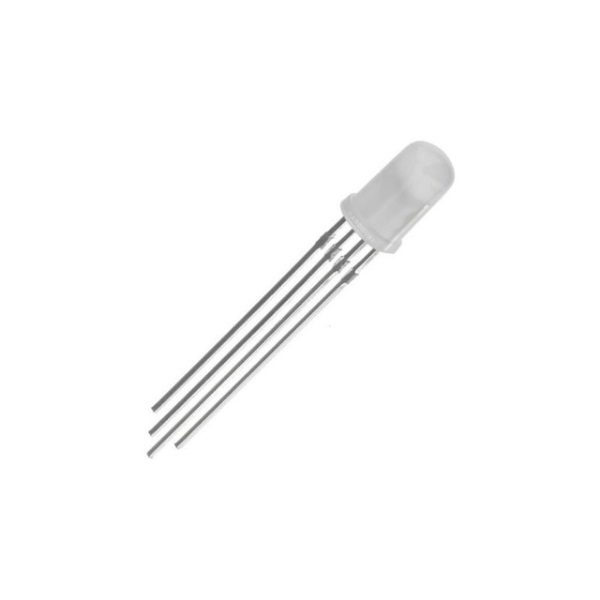

RGB LED 5MM CA 4 Pin Pack 10

The RGB LED 5MM CA 4 Pin Pack 10 is a package of 10 high-quality 5mm RGB LEDs with a common anode configuration and four pins for controlling the red, green, blue, and common anode. These LEDs offer a wide range of colors and can be used in various applications requiring colorful illumination.

Key Features:

• 5mm Size: The compact size of 5mm makes them suitable for various electronic projects and devices.
• RGB Colors: Can produce a wide range of colors by combining different intensities of red, green, and blue light.
• Common Anode Configuration: Simplifies the wiring process by connecting all anodes together.
• 4-Pin Configuration: Provides individual control over the red, green, blue, and common anode, offering more flexibility in controlling the LED's brightness.
• High Brightness: Offers bright and vibrant colors, ensuring visibility in different lighting conditions.
• Durable Construction: Designed for long-lasting performance and reliability.
• Wide Applications: Suitable for various applications, including LED lighting, decorations, signage, and electronic projects.

DATA SHEET AND USECASE

Key Specifications:

• Forward Voltage:

  • Red: 1.8V – 2.2V
  • Green: 3.0V – 3.4V
  • Blue: 3.0V – 3.4V

• Forward Current: 20 mA per color

• Wavelength:

  • Red: 620 nm – 630 nm
  • Green: 520 nm – 530 nm
  • Blue: 460 nm – 470 nm

• Luminous Intensity:

  • Red: 800 mcd
  • Green: 4000 mcd
  • Blue: 900 mcd

• Viewing Angle: 25 degrees

• Package Type: 5mm round, diffused lens
