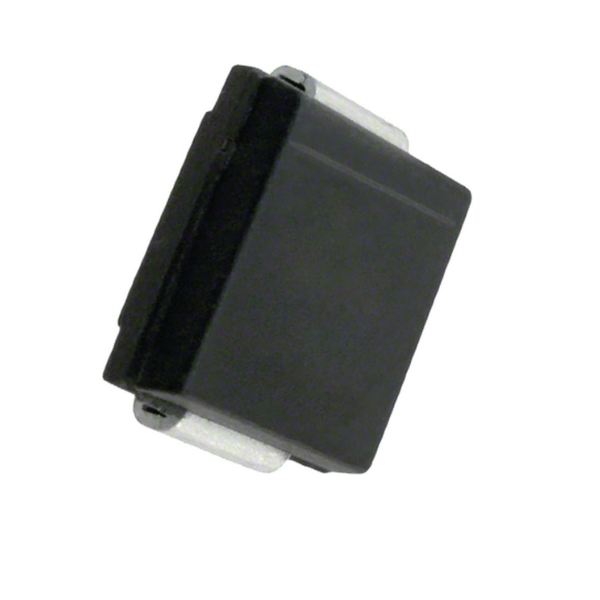

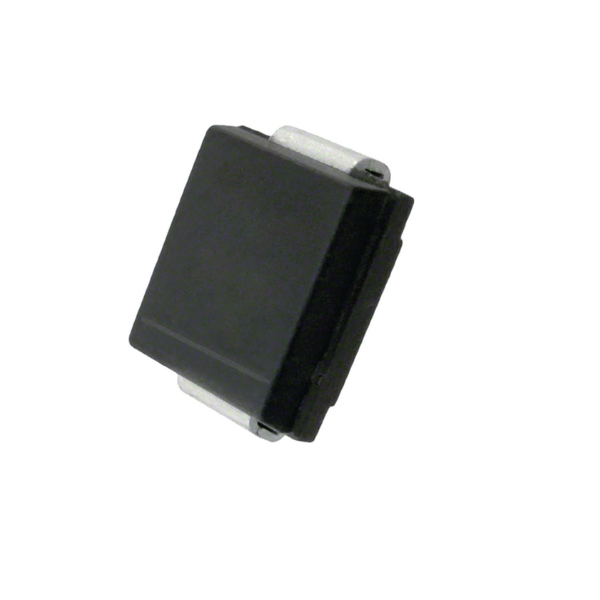

S10MC - General Purpose Diode 10A SMC

(0 Reviews)
In stock

Category: Diode

SKU: 2645


MRP Price:
₹20 55% OFF
Discounted Price:
₹9 (Pc)

Quantity:
(20 available)

Weight:
10 g

Total Price:
Bulk Order
Share:
Sold By
DSMElectro Solutions Private Limited
(1249 customer reviews)

S10MC - General Purpose Diode 10A SMC

Protect your sensitive electronic circuits from voltage surges with the PulsEvo S10MC TVS Bidirectional Diode. This high-performance component is designed to provide reliable overvoltage protection for a wide range of applications.

Key Features:

  • Compact Design: Ideal for space-constrained applications.
  • Fast Response Time: Clamps voltage surges quickly to minimize damage.
  • Low Incremental Surge Resistance: Ensures minimal voltage drop during surge events.
  • Excellent Clamping Capability: Provides effective protection against transient voltage events.

Applications:

  • Industrial control
  • Computer systems
  • VCC bus protection
  • Telecom equipment
  • Consumer electronics
  • Automotive electronics
  • I/O interface protection
  • Sensitive circuit protection

Specifications:

  • Package: SOD-123
  • Stand-Off Voltage: 10V
  • Mounting Type: Surface Mount
  • Peak Pulse Power: 1000W (10/1000µs)
  • Junction Temperature: -55°C to +175°C
  • Clamping Voltage: Typically 6.3V (at 1A)
  • Maximum Peak Pulse Current: 30A (10/1000µs)

DATA SHEET AND USECASE

Key Specifications:

  • Package Type: SMC (DO-214AB)
  • Average Rectified Current (I_O): 10A​
  • Peak Forward Surge Current (I_FSM): Up to 250A​
  • Forward Voltage Drop (V_F): Approximately 1.1V at 10A​
  • Maximum Repetitive Reverse Voltage (V_RRM): 1000V​
  • Reverse Leakage Current (I_R): Typically 10µA at 1000V​
