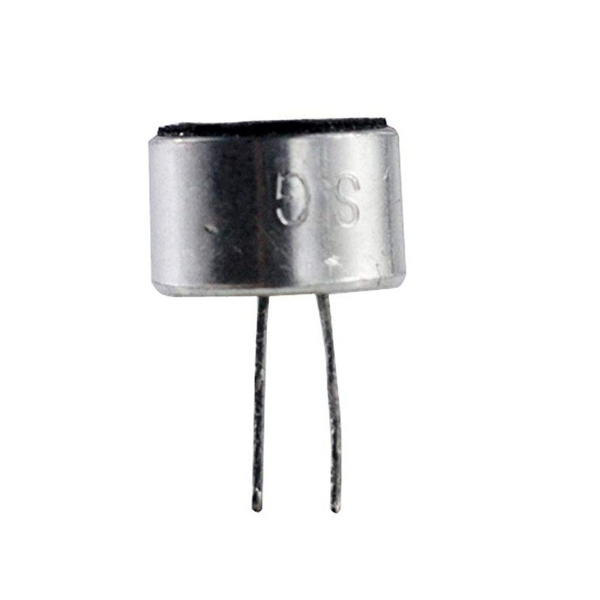

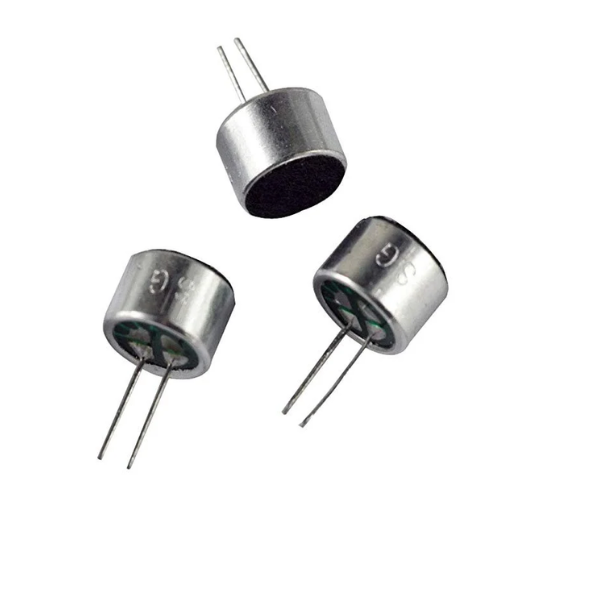

Small microphone 6mm PCB Mount

Sold By

DSMElectro Solutions Private Limited

(1249 customer reviews)

Top Selling Products

Resistor SMD 1206 10K Pack 10

74% OFF

~~₹39~~ ₹11
Digital LED Temperature Controller XH-W3001 12V 120W

41% OFF

~~₹399~~ ₹236
LCD 16x2 Blue Display

40% OFF

~~₹199~~ ₹120
IR tracker sensor

54% OFF

~~₹99~~ ₹46
LiPo Rechargeable Battery High-Quality 3.7V 500mAh

57% OFF

~~₹599~~ ₹258
Relay Module 12V Single Channel

64% OFF

~~₹99~~ ₹37
NEMA17 Planetary Geared Hybrid Stepper Motor 25KGCM Reduction Ratio 1:5

25% OFF

~~₹4,999~~ ₹3,775
LiPo Rechargeable Battery High-Quality 3.7V 380 mAh

25% OFF

~~₹399~~ ₹300

Description Reviews

Description

A small microphone designed for compact electronic devices, measuring only 6mm in diameter. It's intended for PCB mounting and is ideal for applications requiring a discreet and high-quality audio solution.

Key Features

Compact Size: 6mm diameter for minimal footprint.
PCB Mount: Designed for easy integration into printed circuit boards.
High Sensitivity: Captures audio signals with excellent sensitivity.
Wide Frequency Response: Accurately reproduces a broad range of sounds.
Low Noise: Minimizes background noise for clear audio.
Rugged Construction: Built to withstand environmental factors and handling.

Applications

Wearable Devices: Smartwatches, fitness trackers, hearables
Mobile Phones: For improved voice quality and noise cancellation
Gaming Devices: Headsets, controllers
Security Systems: Surveillance cameras, doorbells
Medical Devices: Hearing aids, medical monitoring equipment
Automotive: Voice-activated systems, in-car audio

Specifications

Diameter: 6mm
Frequency Range: 50 – 20KHz
Low power consumption
Microphone sensitivity 56 – 58DB
Mounting: PCB mount

DATA SHEET AND USECASE

Key Features:

Compact Size: With a diameter of 6mm, these microphones occupy minimal space, making them ideal for compact electronic devices.
Omnidirectional Pickup: Many models feature an omnidirectional pickup pattern, capturing sound uniformly from all directions, which is beneficial for general-purpose audio recording.
Frequency Response: Typical frequency response ranges from 50 Hz to 16 kHz, ensuring the capture of a broad spectrum of audio frequencies.
Sensitivity: Sensitivity levels are often around -40 dB, allowing the microphone to detect low-level audio signals effectively.
Operating Voltage: These microphones generally operate within a voltage range of 2V to 10V, providing flexibility for various circuit designs.
