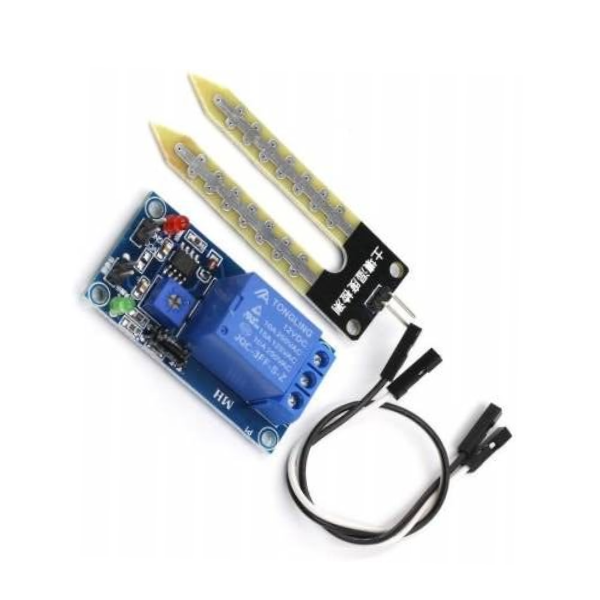

Soil Moisture Sensor Relay Control Module 12V

The Soil Moisture Sensor Relay Control Module 12V is a versatile device designed to automatically control irrigation systems based on soil moisture levels. It combines a soil moisture sensor with a relay, allowing you to automate watering tasks and conserve water.

Key Features:

• Soil Moisture Sensor: Accurately measures soil moisture content.
• Relay Output: Controls a relay to activate or deactivate irrigation systems.
• 12V Power Supply: Operates on a 12V DC power source.
• Adjustable Threshold: Allows you to set the desired soil moisture level for triggering the relay.
• Easy Installation: Simple to connect to your irrigation system and soil moisture sensor.
• Weatherproof Design: Some models are designed to withstand outdoor conditions.

Applications:

• Garden Irrigation: Automatically waters plants based on soil moisture levels, preventing overwatering or underwatering.
• Agriculture: Optimizes irrigation systems for efficient water usage.
• Home Automation: Controls irrigation systems for lawns and gardens.
• Environmental Monitoring: Studies soil moisture conditions and water usage.
• DIY Projects: Creates automated watering systems for various applications.

DATA SHEET AND USECASE

Key Features:

• Soil Moisture Detection: Utilizes probes to measure the soil's moisture content accurately.
• Adjustable Sensitivity: Equipped with a blue potentiometer to set the desired soil moisture threshold. Turning it clockwise increases the threshold, while counterclockwise decreases it.
• Relay Output: Incorporates a relay capable of handling loads up to 10A at 250V AC or 30V DC, allowing direct control of watering devices.
• Delay Function: Features a delay mechanism that updates every 5-8 seconds to prevent rapid switching and ensure stable operation.

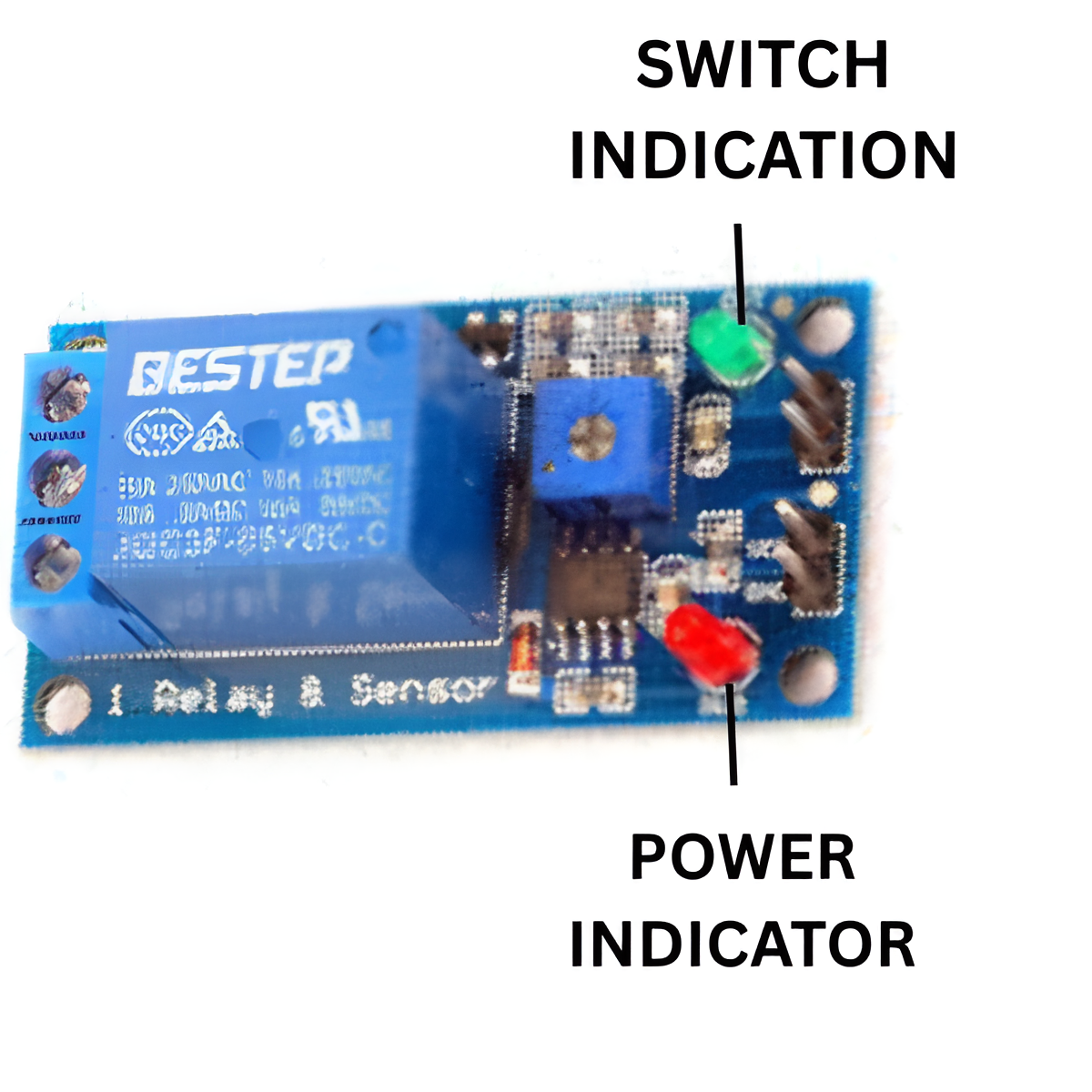

• Indicator LEDs: Includes power and relay status LEDs for easy monitoring of the module's operation.
