SS54 SMD Diode Pack 5

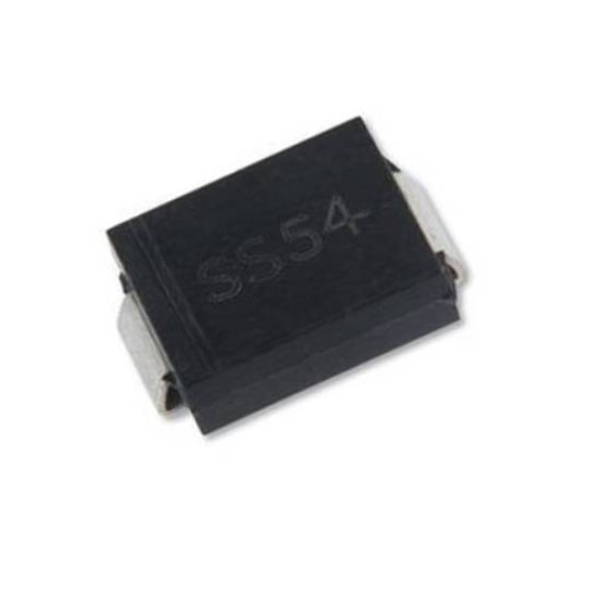

SS54 Schottky Rectifier Diode (5-Pack)

Enhance your electronic circuits with the SS54 Schottky Rectifier Diode. This high-performance component is ideal for applications requiring speed, efficiency, and reliability.

Key Features:

• Compact Size: Easy to integrate into your designs.
• Fast Switching Speed: Ideal for high-frequency applications and switching circuits.
• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.
• High Current Capability: 5A average rectified forward current.
• Rugged Construction: Built to withstand demanding operating conditions.

Applications:

• Inverters
• DC-DC converters
• Motor control circuits
• Switching power supplies
• High-frequency rectification

Specifications:

• Package: DO-214AC
• Reverse Voltage : 40V
• Mounting: Through Hole
• Reverse Recovery Time : 5ns
• Max. Reverse Current : 1.5mA
• Type: Schottky Rectifier Diode
• Average Rectified Current (Io): 5A
• Max. Forward Voltage Drop : 0.55V
• Operating Junction Temperature Range: -65°C to +150°C

DATA SHEET AND USECASE

Datasheet Overview:

• Package Type: SMC (DO-214AB)
• Reverse Current : Typically 1.5mA​
• Average Forward Current (IF(AV)): 5A​
• Maximum Repetitive Peak Reverse Voltage : 40V​
• Maximum Forward Voltage Drop : Approximately 0.55V at 5A​
