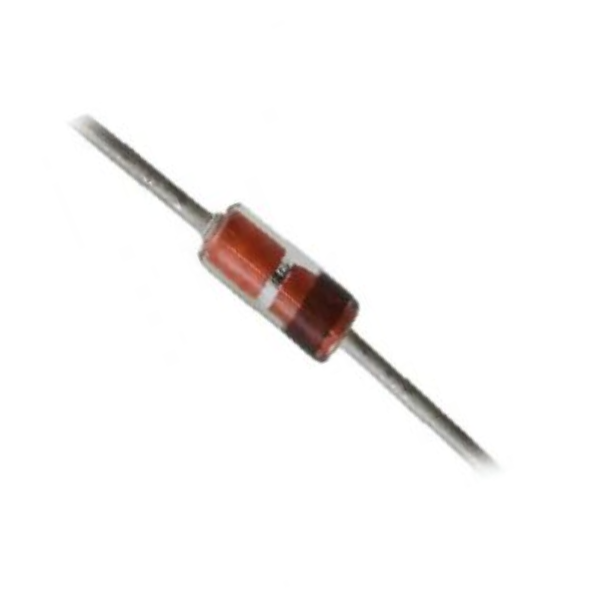

TC1N4148TB (Diode) Pack 100

(0 Reviews)

In stock

Category: Diode

SKU: 2419

MRP Price:

~~₹59~~ 14% OFF

Discounted Price:

₹52 (Pc)

Quantity:

(20 available)

Weight:

20 g

Share:

Sold By

DSMElectro Solutions Private Limited

(1249 customer reviews)

Top Selling Products

Resistor SMD 1206 10K Pack 10

74% OFF

~~₹39~~ ₹11
Digital LED Temperature Controller XH-W3001 12V 120W

41% OFF

~~₹399~~ ₹236
LCD 16x2 Blue Display

40% OFF

~~₹199~~ ₹120
IR tracker sensor

54% OFF

~~₹99~~ ₹46
LiPo Rechargeable Battery High-Quality 3.7V 500mAh

57% OFF

~~₹599~~ ₹258
Relay Module 12V Single Channel

64% OFF

~~₹99~~ ₹37
NEMA17 Planetary Geared Hybrid Stepper Motor 25KGCM Reduction Ratio 1:5

25% OFF

~~₹4,999~~ ₹3,775
LiPo Rechargeable Battery High-Quality 3.7V 380 mAh

25% OFF

~~₹399~~ ₹300

Description Reviews

Description:

The 1N4148 is a high-speed silicon switching diode. It's designed for applications that require fast switching speeds.
The "TC1N4148TB" designation indicates a specific packaging or manufacturing variation of the standard 1N4148 diode.
It's a small, through-hole component, typically in a DO-35 package.

Key Features:

Low Leakage Current: It minimizes unwanted current flow.
High Reliability: It's a robust and dependable component.
High Reverse Voltage: the Reverse Voltage (VRRM): 100V (typical)
Relatively Low Forward Voltage Drop: This helps to reduce power loss.
Small Size: Its compact design allows for easy integration into various circuits.
Fast Switching Speed: This is its primary characteristic, making it suitable for high-frequency applications.

Applications:

Switching Circuits: Used in logic gates, signal switching, and other digital circuits.
High-Speed Rectification: Employed in applications where fast rectification is required.
Signal Processing: Used in clamping, clipping, and other signal manipulation circuits.
Protection Circuits: Can be used to protect sensitive components from voltage spikes.
Computer and Digital Systems: Used in various digital electronic devices.
Tele-communications: Used in telephone and other tele-communication equipment.

DATA SHEET AND USECASE

Key Specifications:

Maximum Repetitive Reverse Voltage (V_RRM): 100V
Average Rectified Forward Current (I_O): 200mA
Non-Repetitive Peak Forward Surge Current (I_FSM): 1A at 1s pulse width; 4A at 1μs pulse width
Forward Voltage : 1V at 10mA
Reverse Recovery Time : 4ns
Power Dissipation : 500mW

Download
