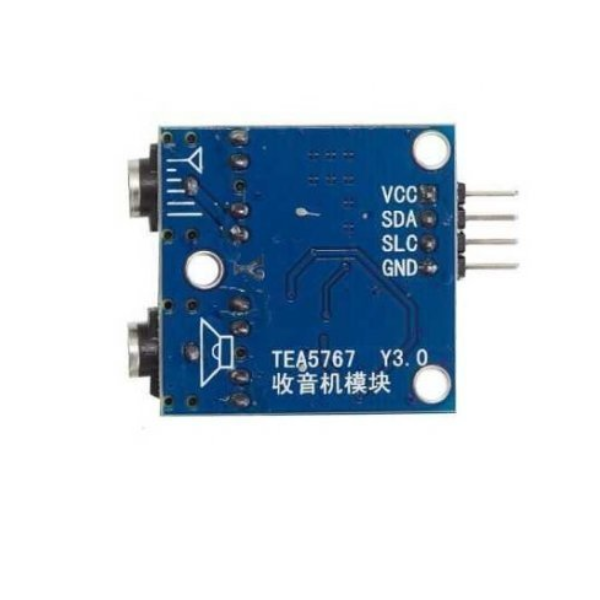

TEA5767 Stereo FM Radio Module with Detachable Antenna

• Superior FM Performance: Enjoy crystal-clear FM broadcasts with excellent sensitivity and selectivity.
• Versatile Integration: Seamlessly connect to Arduino, Raspberry Pi, and other microcontrollers using the I2C bus.
• Plug-and-Play Convenience: Easily connect your antenna with the direct plug-in interface.
• Robust Protection: Benefit from reverse polarity protection and power output filtering for added reliability.
• User-Friendly Design: Features a blue LED power indicator and soft mute functionality for convenient operation.

• FM chip: TEA5767
• Power supply: 2.5-3.3V
• Current consumption: 15mA (typical)
• Frequency range: 64-108MHz
• Sensitivity: ≤10.7dBf
• Audio output: 3.5mm jack
• Interface: I2C bus

• DIY radio projects
• IoT devices
• Home automation systems
• Portable audio devices

DATA SHEET AND USECASE

Key Features:

• High Sensitivity: Incorporates a low-noise RF input amplifier, enhancing signal reception.
• Wide Frequency Range: Supports tuning across European, US, and Japanese FM bands (76 MHz to 108 MHz).
• Automatic Gain Control (AGC): Maintains consistent audio output levels despite varying signal strengths.
• Integrated FM Demodulator: Eliminates the need for an external discriminator, simplifying design.
• I²C Interface: Facilitates easy communication with microcontrollers for tuning and control.
