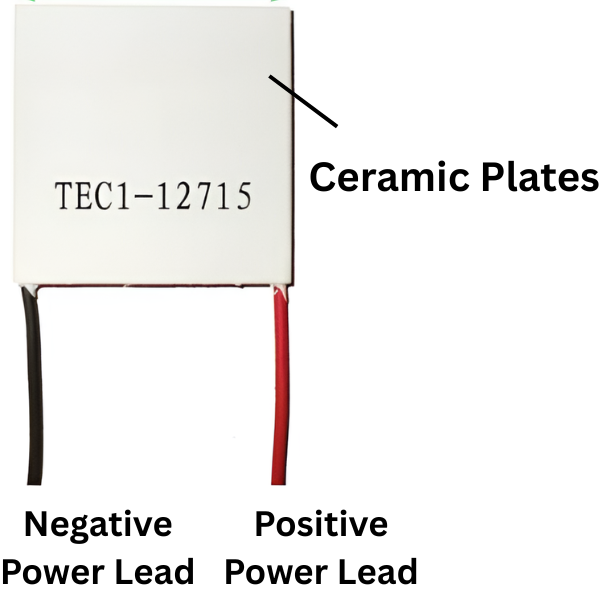

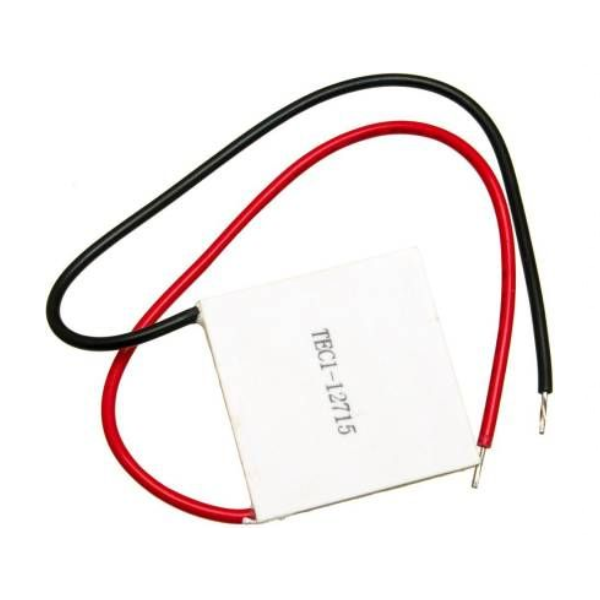

TEC1-12715 136W Thermoelectric Peltier Module

Description:

• The TEC1-12715 is a thermoelectric cooling (TEC) module that utilizes the Peltier effect to transfer heat. This allows it to function as a solid-state heat pump, capable of both cooling and heating.

Key Features:

• Solid-state construction: No moving parts, resulting in high reliability and long lifespan.
• Compact size: Allows for integration into space-constrained applications.
• Rapid cooling and heating: Offers quick temperature response.
• Precise temperature control: Enables accurate temperature regulation.
• Versatility: Can be used for both cooling and heating.

Applications:

• Electronics cooling: Cooling CPUs, GPUs, and other electronic components.
• Portable refrigerators: Used in small, portable cooling units.
• Medical devices: Temperature control in medical equipment.
• Laser cooling: Maintaining stable temperatures for lasers.
• Scientific instruments: Temperature regulation in laboratory equipment.
• industrial cooling.

Specifications:

• Maximum current (Imax): Typically around 15A.
• Maximum voltage (Vmax): Typically around 15.4V.
• Maximum cooling power (Qmax): Around 136W.
• Maximum temperature difference (Delta Tmax): Varies, but often around 60-70°C.

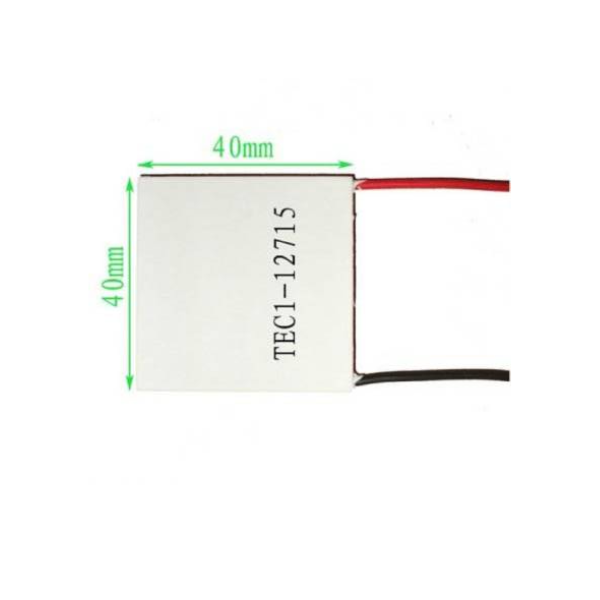

• Dimensions: Commonly 40mm x 40mm x approximately 3.6-4.5mm.
• Resistance: around 0.75 ohms.

DATA SHEET AND USECASE

Key Specifications:

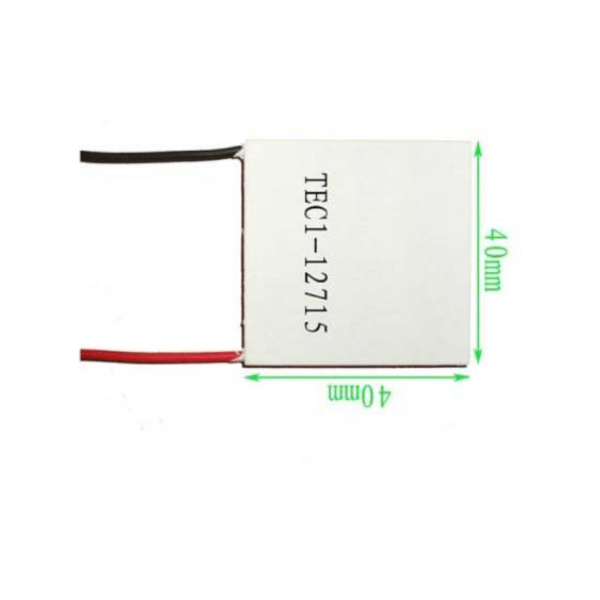

• Dimensions: 40mm x 40mm x 3.8mm
• Maximum Voltage (Umax): 15.4V
• Maximum Current (Imax): 15A
• Maximum Power Consumption: 231W
• Maximum Cooling Power (Qmax): 136W
• Temperature Differential (ΔT): Up to 68°C
• Operating Temperature Range: -55°C to 83°C
• Module Resistance: 0.75Ω
