Description:

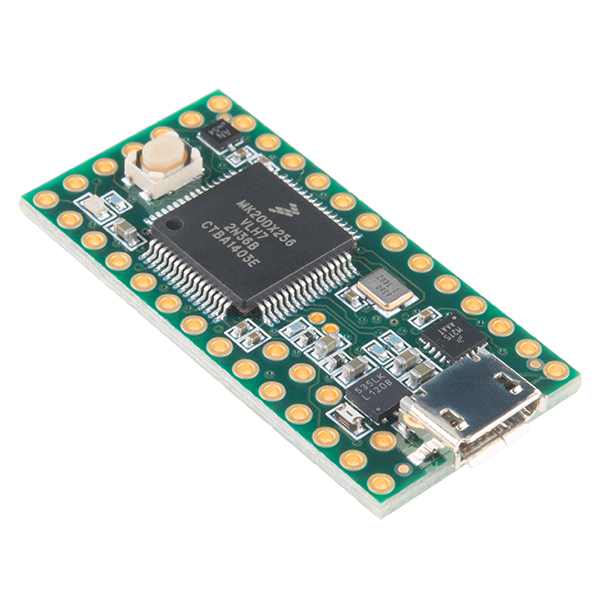

The Teensy 3.2 is a powerful and versatile microcontroller development board that offers a wide range of features in a compact package. It is ideal for a variety of projects, from simple experiments to complex electronic devices.
Key Features:
- 32-bit ARM Cortex-M4 processor: Provides high-performance computing power for demanding applications.
- 256KB flash memory and 64KB RAM: Offers ample storage for your programs and data.
- 21 high-resolution analog inputs: Allows for precise measurements and control of analog signals.
- 12-bit DAC: Enables high-quality audio output and analog control.
- 34 digital I/O pins: Provides flexibility for connecting various sensors, actuators, and other devices.
- 12 PWM outputs: Enables precise control of motor speeds, LED brightness, and other analog outputs.
- 7 timers: Offers accurate timing and control for various applications.
- USB connectivity: Allows for easy programming, communication, and power supply.
- Multiple communication interfaces: Includes UART, SPI, I2C, I2S, and CAN bus for seamless integration with other devices.
- Real-time clock: Provides accurate timekeeping for time-sensitive applications.
Applications:
- Embedded systems: Develop custom control systems for industrial, automotive, and consumer applications.
- Robotics: Build autonomous robots with advanced sensing and control capabilities.
- IoT devices: Create connected devices for the Internet of Things.
- Wearable technology: Develop innovative wearable devices with advanced features.
- Musical instruments: Create custom musical instruments and sound effects.
- Educational projects: Explore electronics, programming, and robotics in a hands-on way.
DATA SHEET AND USECASE
Key Specifications:

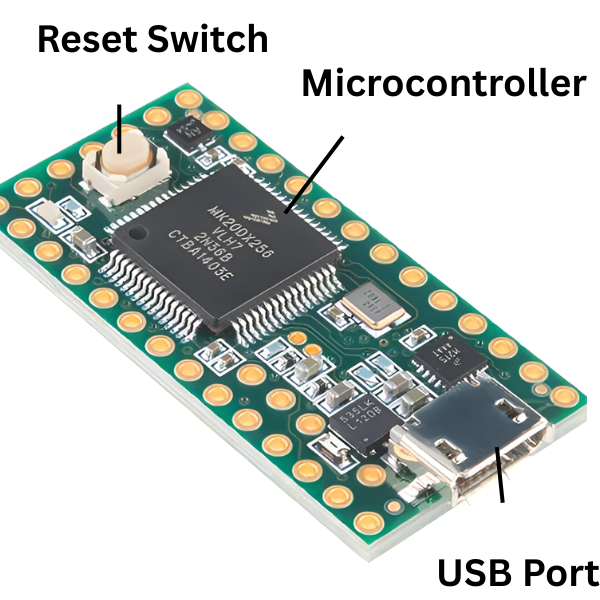

- Microcontroller: MK20DX256VLH7 ARM Cortex-M4 at 72 MHz
- Flash Memory: 256 KB
- SRAM: 64 KB
- EEPROM: 2 KB
- Digital I/O Pins: 34 (all 5V tolerant)
- Analog Input Pins: 21
- PWM Pins: 12
- Communication Interfaces: 3 UARTs, SPI, 2 I²C, I²S, CAN Bus
- ADC: 2×16-bit
- DAC: 12-bit
- Operating Voltage: 3.3V (with 5V tolerant pins)
- Dimensions: 1.4 x 0.7 inches
