Ten Segment LED Bar Graph Display Red Pack 2

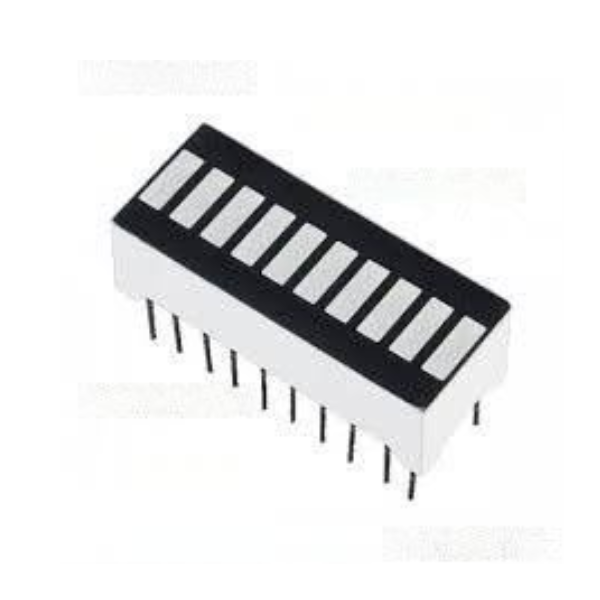

Ten-Segment LED Bar Graph Display (Red)

Overview: This compact and visually striking LED bar graph display features ten individual red LEDs arranged in a linear configuration. It's a versatile component ideal for various electronic projects, providing a clear and intuitive representation of data or levels.

Key Features:

• 10-Segment Display: Offers a clear and versatile visual representation.
• Bright Red LEDs: Deliver a vibrant and attention-grabbing display.
• Compact Design: Fits seamlessly into various projects.
• Easy to Use: Plug-and-play design for simple integration.
• Durable Construction: Built to last with a sturdy plastic casing.

Applications:

• Data Visualization: Track progress, levels, or values in real time.
• Level Indicators: Monitor battery charge, signal strength, or other parameters.
• Electronic Projects: Add a visual element to your DIY creations.
• Educational Demonstrations: Teach electronics and data visualization concepts.

Package Includes:

• 2 x Ten Segment LED Bar Graph Display (Red)

DATA SHEET AND USECASE

Technical Specifications:

• Forward Voltage: Typically ranges from 1.8V to 2.2V per segment.

• Forward Current: Commonly around 20mA to 25mA per segment.

• Dimensions: Approximately 25.5mm x 10mm x 6.5mm.

• Pin Configuration: 20 pins in total, with 10 anode and 10 cathode pins, arranged with a standard 0.1" (2.54mm) pitch.


Applications:

These displays are versatile and commonly used in:

• Audio Equipment: Visualizing audio levels in mixers and amplifiers.
• Battery Indicators: Displaying charge levels in portable devices.
• Signal Strength Displays: Indicating reception quality in communication devices.
• Industrial Control Panels: Monitoring system statuses or process levels.
