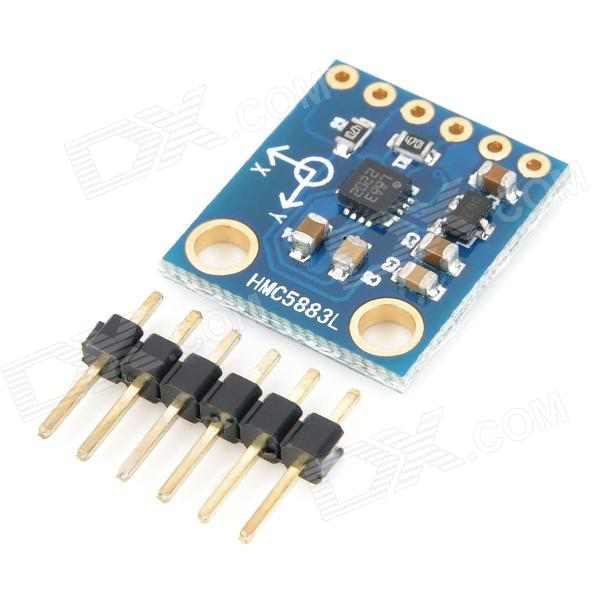

Triple-Axis Compass Magnetometer Sensor Module hmc5883l

1) 3-axis magnetic electronic compass.
2) Precise heading information.0
3) Operating Voltage: 3 -5 V DC.
4) Driver Chip: QMC5883L.
5) Communication: I2C protocol.
6) Measuring range: ± 1.3-8 Gauss.

​Description:

This is an HMC5883L triple-axis compass magnetometer sensor module with power supply of 3.3V or 5V.There is a 2.54mm pin pitch. It comes with a pin header.

Specifications:

• 3-Axis Magneto resistive Sensors and ASIC in a 3.0x3.0x0.9mm LCC Surface Mount Package
• 12-Bit ADC Coupled with Low Noise AMR Sensors Achieves 2 milli-gauss Field Resolution in ±8 Gauss Fields
• Built-In Self Test
• Low Voltage Operations (2.16 to 3.6V) and Low Power Consumption (100 μA) 4
• Built-In Strap Drive Circuits
• I2C Digital Interface
• Wide Magnetic Field Range (+/-8 Oe)
• Fast 160 Hz Maximum Output Rate

Package Include:

1 X  Triple-Axis Compass Magnetometer Sensor Module HMC5883L.
