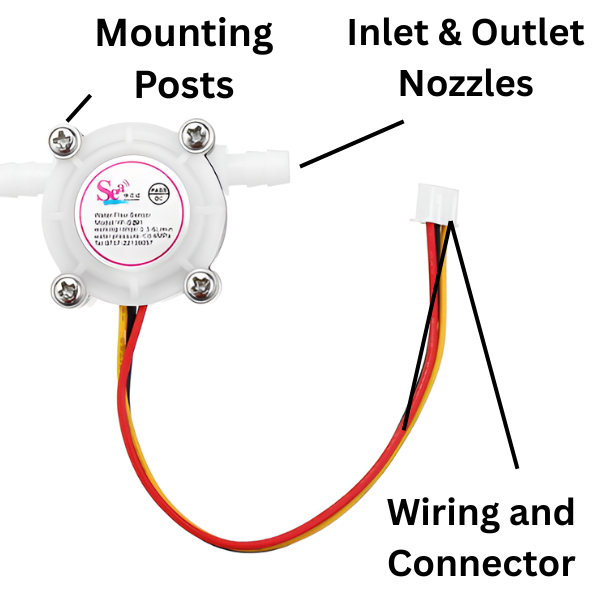

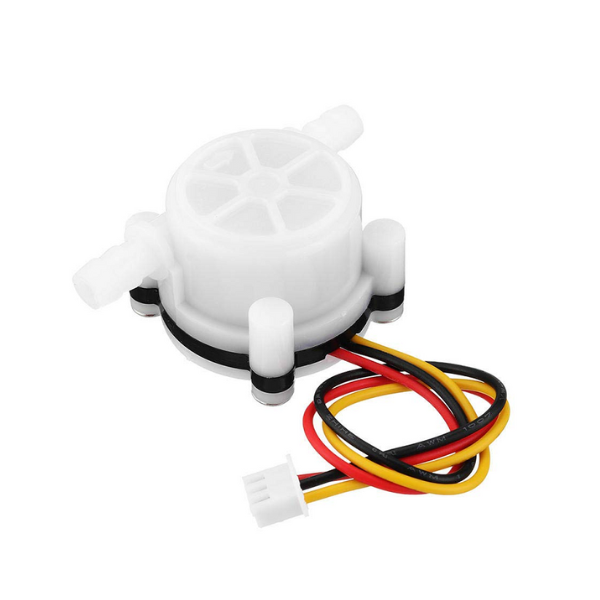

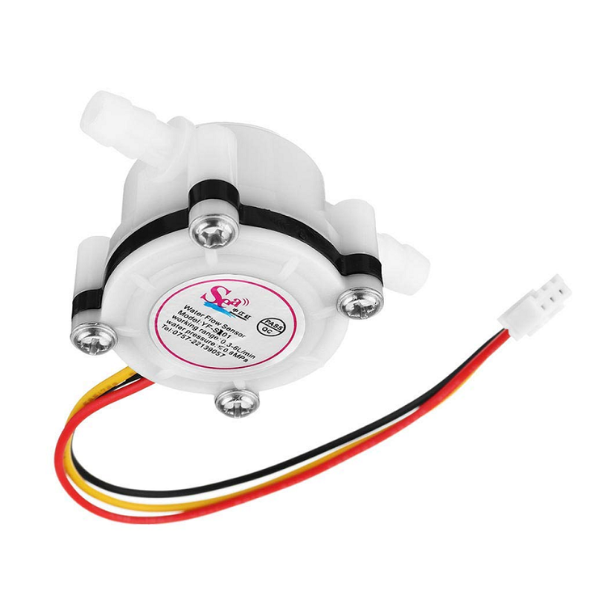

Water Flow Sensor (Sea) YFS401 Flowmeter 0.3-6L/min3.5mm White

The YFS401 Flowmeter is a compact and accurate flow sensor designed for measuring the flow rate of liquids in various applications. It features a wide flow range, high sensitivity, and a durable construction.

Key Features:

• Flow Range: Measures flow rates from 0.3 to 6 liters per minute.
• Accuracy: Provides accurate measurements with a typical accuracy of ±2%.
• Low Pressure Loss: Minimizes pressure loss across the sensor, ensuring efficient flow.
• Compact Size: Small and lightweight for easy installation in various environments.
• Durable Construction: Made from high-quality materials for long-term reliability.

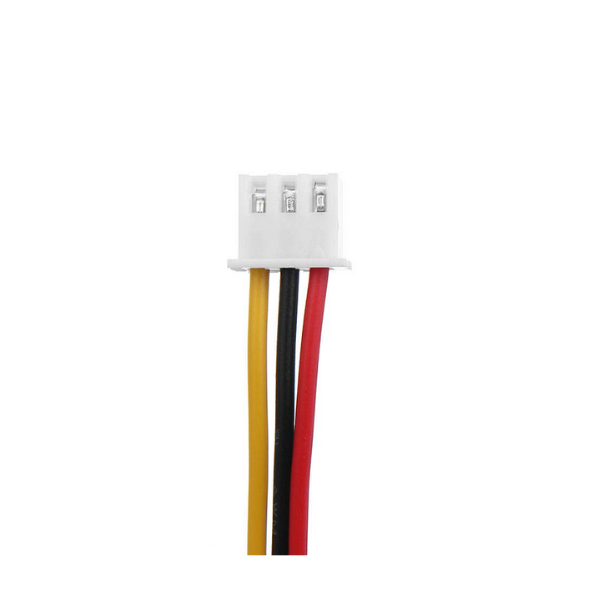

• Output Signal: Generates a pulse output signal that can be easily connected to a microcontroller or other device.

Applications:

• Water Treatment: Monitors water flow in water treatment plants and filtration systems.
• Irrigation Systems: Measures water flow to optimize irrigation efficiency.
• Industrial Processes: Monitors liquid flow in various industrial applications.
• Laboratory Equipment: Used in laboratory equipment for precise liquid measurements.
• Environmental Monitoring: Tracks water flow in environmental monitoring systems.

DATA SHEET AND USECASE

Key Specifications:

• Flow Rate Range: 0.3–6 liters per minute
• Working Voltage: DC 5V to 24V
• Working Current: 15mA (at 5V DC)
• Output Pulse Characteristics: Approximately 5880 pulses per liter, equating to roughly one pulse per 0.17 milliliters
• Accuracy: ±5%
• Inner Diameter: 4 mm
• Outer Diameter: 7 mm
• Recommended Hose Size: 6 mm
• Maximum Water Pressure: <0.8 MPa
• Operating Temperature Range: Up to 120°C
