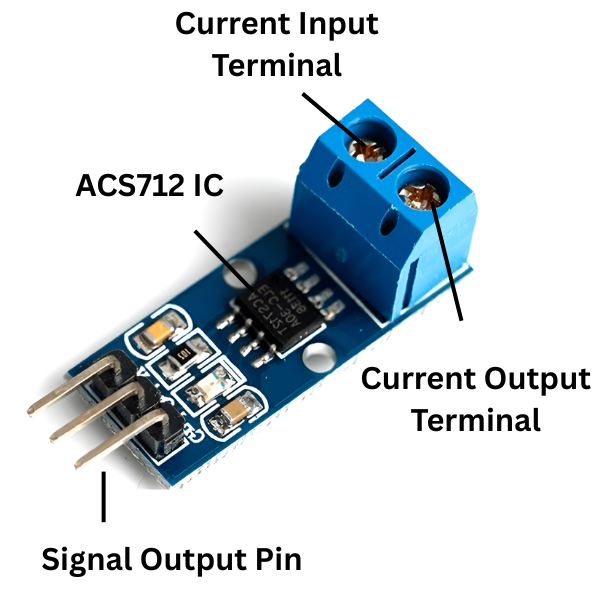

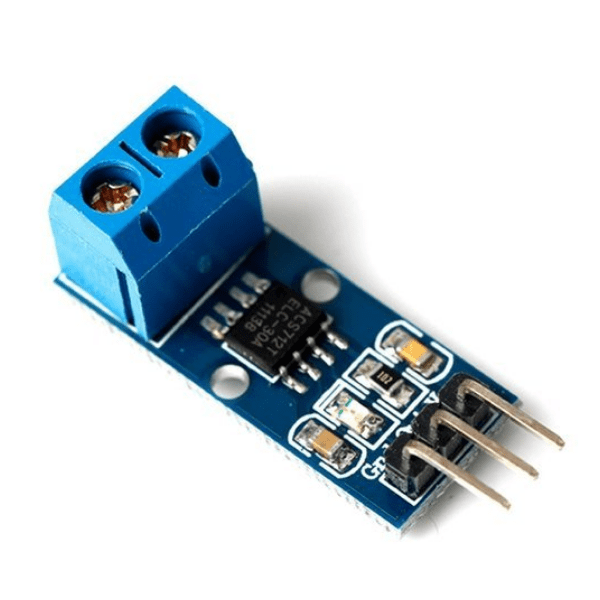

30A Range Current Sensor Module ACS712

The ACS712 is a Hall Effect-based current sensor IC designed to measure AC and DC currents up to 30 amps. It provides a voltage output proportional to the measured current, making it a convenient and efficient solution for various current sensing applications.

Key Features:

• Wide Current Range: Measures AC and DC currents up to 30 amps.
• Hall Effect Technology: Provides a precise and non-invasive measurement.
• Analog Output: Generates a voltage output proportional to the measured current.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered applications.
• Compact Size: Small and lightweight for easy integration into various projects.
• Temperature Compensation: Automatically compensates for temperature variations to ensure accurate measurements.

Applications:

• Power Measurement: Measures the power consumption of electrical devices or systems.
• Current Monitoring: Monitors the current flow in electrical circuits.
• Overcurrent Protection: Detects and responds to excessive current levels.
• Battery Management: Monitors battery charging and discharging currents.
• Industrial Automation: Controls and monitors industrial processes.

DATA SHEET AMD USECASE

Key Specifications:

• Supply Voltage: 4.5 V to 5.5 V DC
• Current Measurement Range: -30 A to +30 A
• Sensitivity: 66 mV/A
• Output Voltage at 0 A: VCC/2 (typically 2.5 V)
• Dimensions: Approximately 31 x 13 x 13.5 mm
