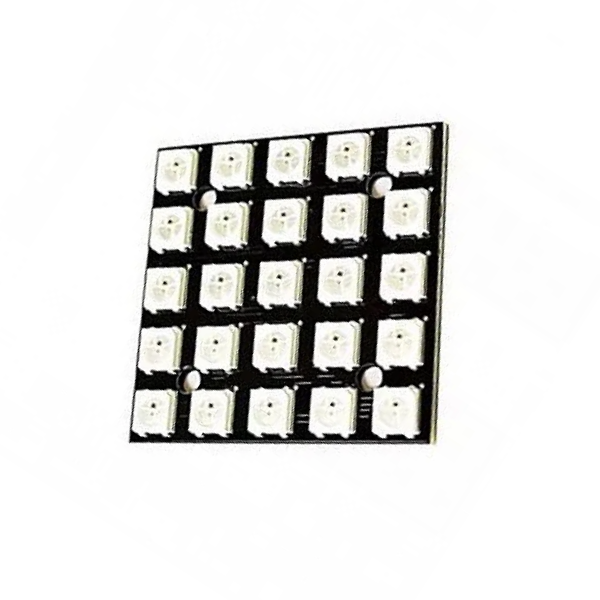

WS2812B 5x5 Digit RGB LED Full Color Driver 25-Bit Development Board

The WS2812B 5x5 Digit RGB LED Full Color Driver 25-Bit Development Board is a versatile electronic component used to control and display various text, images, and animations on a 5x5 grid of RGB LEDs. It offers precise control over the color and brightness of each individual LED, allowing for highly customizable and visually appealing displays.

Key Features:

• 5x5 RGB LED Matrix: Consists of 25 RGB LEDs arranged in a 5x5 grid, providing a large display area for various visual outputs.
• WS2812B Driver IC: Uses the WS2812B integrated circuit for efficient control of the LEDs, enabling precise color and brightness adjustments.
• 25-Bit Color Depth: Offers a wide range of colors with 25-bit color depth, ensuring vibrant and accurate displays.
• Customizable Display: Can be programmed to display various text messages, images, animations, and patterns.
• Easy-to-Use: Simple to integrate into electronic projects and control using appropriate software or hardware.
• Wide Applications: Suitable for various applications, including electronic signs, displays, lighting effects, and creative projects.

DATA SHEET AND USECASE

Key Features:

• Integrated Control Circuit: Each LED has a built-in driver, enabling individual addressability and simplifying wiring requirements.

• High Color Consistency: The LEDs offer 256 levels of brightness per color channel, resulting in over 16 million possible colors with consistent illumination.

• Single-Line Data Transmission: The board uses a single data line for communication, facilitating easy integration with microcontrollers like Arduino or Raspberry Pi.

• Cascade Capability: Multiple boards can be connected in series, allowing for scalable designs without complex wiring.

Common Applications:

• LED Displays: Creating text, animations, or visual effects for informational or decorative purposes.

• Status Indicators: Providing visual feedback in various devices or systems.

• Prototyping: Developing and testing lighting patterns or effects in electronic projects.

• Decorative Lighting: Designing customizable lighting solutions for events or installations.
