Xinya XY2500 3 Pin Right Angle Connector Male 5.08mm Pitch 10 PC

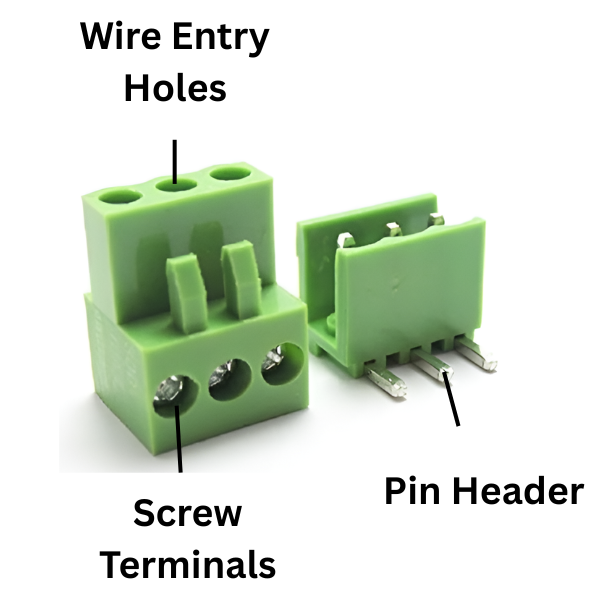

XY2500 3 Pin Close Type Male Right Angle Pluggable Terminal: Reliable and Versatile

Upgrade your electronics projects with this high-quality 3-pin terminal block. Designed for secure and efficient wire connections, it's ideal for various applications.

Key Features:

• 3 Pins: Accommodates up to three wires.
• 5.08mm Pitch: Provides ample spacing for wire connections.
• Pluggable Design: Allows for easy installation and removal.
• High Current Rating: Handles up to 12 amps for demanding circuits.
• Right Angle Configuration: Saves space and allows for efficient wiring.

Applications:

• Electronic Circuits: Connect components in your projects.
• Industrial Equipment: Use in various industrial settings.
• Prototyping: Experiment with different circuit configurations.
• General-Purpose Applications: Suitable for a wide range of electronic needs.

Specifications:

• Number of Pins: 3
• Pitch: 5.08mm
• Rated Voltage: 250V AC
• Rated Current: 12A
• Connector Type: Pluggable Terminal Block
• Orientation: Right Angle

Choose the XY2500 3 Pin Close Type Male Right Angle Pluggable Terminal for a reliable and efficient connection in your electronics projects.

DATA SHEET AND USECASE

Key Specifications:

• Current Rating: 12A at 250V AC

• Pitch (Pin Spacing): 5.08mm

• Compatible Wire Size: Up to 2.5 sq. mm

• Operating Temperature Range: -40°C to 105°C

• Contact Plating: Tinned

• Insulation Resistance: 5000MΩ at 1000V
