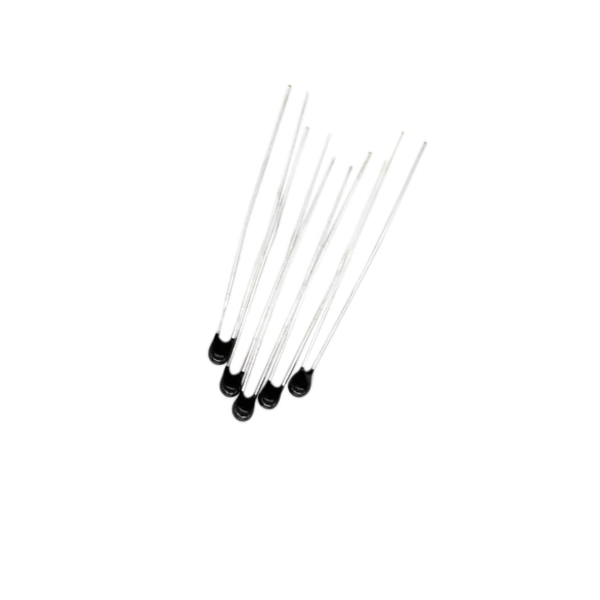

10k Ohm NTC Thermistor Pack 5

Description:

Monitor and control temperature with our reliable NTC thermistor. This compact and accurate sensor provides precise resistance changes in response to temperature fluctuations, making it ideal for a wide range of applications.

Key Features:

• Negative Temperature Coefficient: Resistance decreases as temperature increases for precise temperature measurement.
• Fast Response Time: 10-second thermal time constant for rapid temperature sensing.
• Accurate Resistance: 10K ohm nominal resistance with ±1% tolerance.
• Wide Operating Range: -80°C to +150°C for versatility in various environments.
• Compact Design: 2mm diameter and 30mm length for space-saving applications.
• High Power Rating: 75mW maximum power dissipation for reliable performance.
• Versatile Applications: Ideal for temperature compensation, control, measurement, and more.

Specifications:

• Type: NTC thermistor
• Resistance: 10K ohms
• Tolerance: ±1%
• Maximum Power Rating: 75mW
• Operating Temperature Range: -80°C to +150°C
• Thermal Time Constant: 10 seconds
• Dimensions: 2mm diameter x 30mm length
