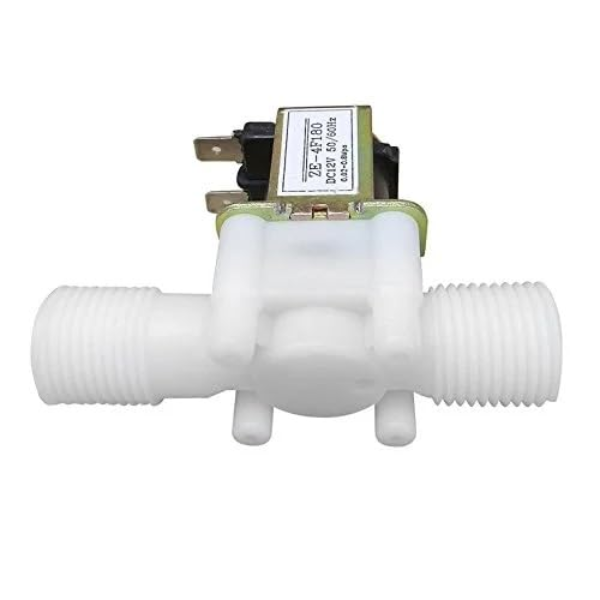

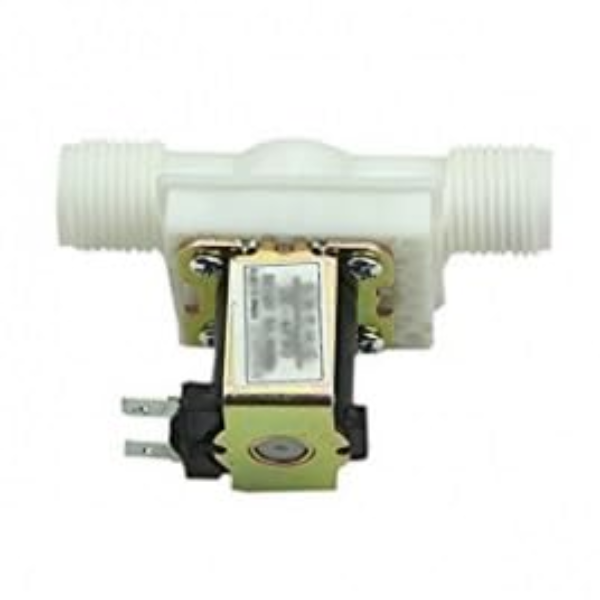

12V DC 1/2″ Electric Solenoid Water Air Valve Switch

• Compact and convenient.
• Easily installed and serviced
• Precise and reliable.
• The installation direction can be arbitrary Angle
• Pressure-regulating valve (steady flow valve) function similar to the water flow switch
• Not only can it provide a steady flow, but it also prevents the dry burning.
• Suitable for fluids like water, oil, air.

• Voltage: 12V DC
• Bore Size: 1/2 inch
• Medium: Water/Air
• Function: Valve Switch

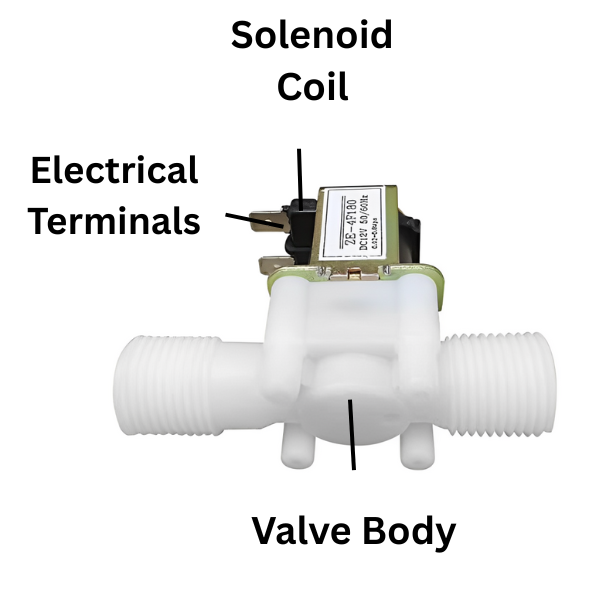

• Type: Electric Solenoid

DATA SHEET AND USECASE

Key Specifications:

• Operating Voltage: 12V DC
• Port Size: 1/2 inch NPT (National Pipe Thread)
• Operation Mode: Normally Closed (NC) or Normally Open (NO)
• Body Material: Typically brass or stainless steel
• Seal Material: Commonly VITON or NBR (Nitrile Butadiene Rubber)
• Orifice Size: Approximately 15-16 mm
• Flow Rate (Cv): Around 4.8 (equivalent to approximately 36 GPM at 60 PSI)
• Pressure Range:
  • Water: 0 to 115 PSI
  • Air: 7 to 115 PSI
• Temperature Range: 15°F to 250°F (-10°C to 120°C)
• Power Consumption: Approximately 18 Watts
• Coil Connection: Lead wires or DIN connectors
• Suitable Media: Water, air, fuel, oil, and other low-viscosity fluids
