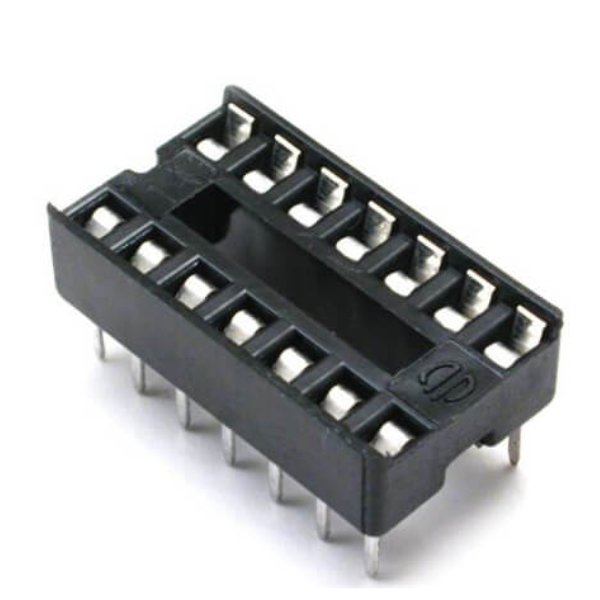

14 Pin DIP IC Socket Base Adaptor Pack 10

Protect Your ICs with Our 14-Pin ZIF IC Socket

Our 14-pin ZIF (Zero Insertion Force) IC socket base adaptor is a versatile tool for working with delicate integrated circuits (ICs). Designed to protect your ICs from heat damage during soldering, this socket provides a convenient and secure way to connect and disconnect components.

Key Features:

• Zero Insertion Force: Easily insert and remove ICs without applying excessive force.
• 14-Pin Compatibility: Accommodates a wide range of 14-pin DIP ICs.
• JDEC Compliant: Meets industry standards for IC sockets.
• Molded Notch: Ensures proper IC orientation for accurate connections.
• Durable Construction: Built to last with high-quality materials.
• Through-Hole Mounting: Easily integrates into your circuit board.

Applications:

• IC Programming: Safely program and test 14-pin DIP ICs.
• Electronics Development: Experiment with different ICs in your projects.
• Education: Demonstrate the functionality of ICs in educational settings.
• Hobbyists and Makers: Use for various electronic projects and experiments.

Specifications:

• Number of Pins: 14
• Color: Black
• Pin Pitch: (Specify the pin pitch)
• Dimensions: 8 × 11 × 6 cm
• Mounting Type: Through-hole
• Material: Phosphor Bronze

Order now and protect your valuable ICs with our 14-pin ZIF IC socket base adaptor!

DATA SHEET AND USECASE

Typical Specifications:

• Number of Pins: 14

• Pin Pitch: 2.54 mm (standard spacing between pins)

• Contact Material: Brass with tin-surface plating to reduce oxidation

• Current Rating: 1 A

• Insulator Material: Thermoplastic Polyester

• Features: Molded notch for proper orientation; easy insertion and removal of ICs
