1k ohm 9 Pin Resistor Network -SIP Pack 5

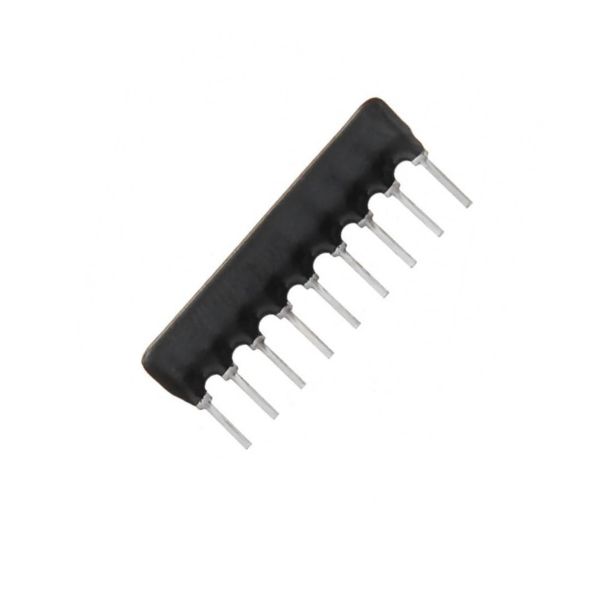

1K Ohm Through-Hole Resistor Network (SIP)

Elevate your electronic projects with our high-quality 1K ohm resistor network. This versatile component provides eight 1K ohm resistors and a common ground in a compact, through-hole package.

Key Features:

• Resistance: 1K ohms per resistor
• Resistors: 8 resistors
• Package: SIP (Single In-Line Package)
• Mounting Type: Through-hole
• Power Rating: 0.5 watts
• Tolerance: ±5%
• Maximum Working Voltage: 100 volts

Applications:

• Voltage Dividers: Create precise voltage references and signal attenuation.
• Current Limiting: Protect sensitive components from excessive current.
• Amplifier Feedback: Control gain and stability in amplifier circuits.
• Filter Networks: Design passive filters for frequency-selective applications.
• General Circuit Design: A fundamental component in various electronic circuits.

Benefits:

• Efficiency: Combines multiple resistors into a single package, saving space and reducing complexity.
• Precision: Offers accurate resistance values for precise circuit design.
• Reliability: Constructed with high-quality materials for durability and consistent performance.
• Versatility: Suitable for a wide range of electronic applications.
• Compact Size: Easy to integrate into breadboards and PCBs.

Specifications:

• Resistance: 1K ohms
• Tolerance: ±5%
• Power Rating: 0.5 watts
• Maximum Working Voltage: 100 volts
• Package: SIP

Conclusion:

The 1K ohm through-hole resistor network is an essential component for various electronic projects, providing precise resistance and reliable performance in a compact package. Its versatility and efficiency make it a valuable choice for engineers and hobbyists alike.

DATA SHEET AND USECASE

Datasheet Example:

• Resistance Value: 1kΩ per resistor
• Tolerance: ±2%
• Power Rating per Resistor: 200 mW
• Temperature Coefficient: ±100 ppm/°C
• Package: 9-pin SIP
• Configuration: Bussed (common pin connected to all resistors)
