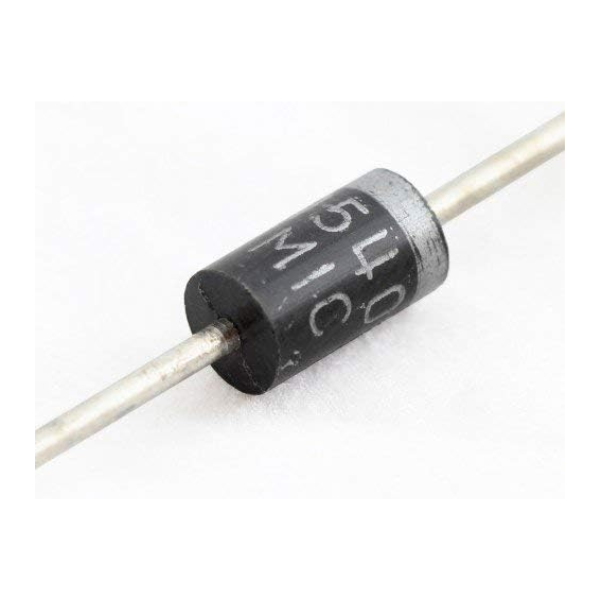

1N5408 -3A General Purpose Rectifier Diode Through Hole D0-201 Pack 10

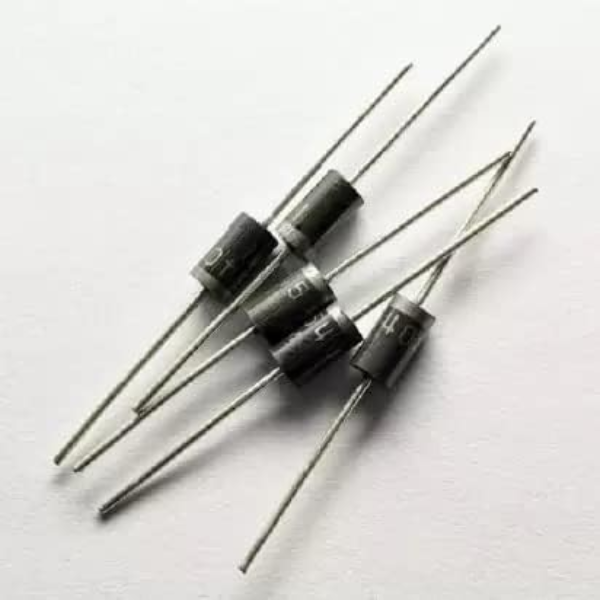

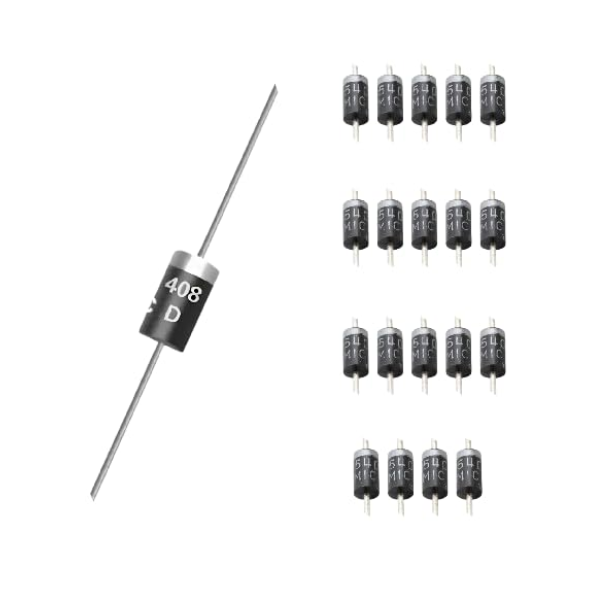

1N5408 High-Power Rectifier Diode (10-Pack)

Enhance your electronic circuits with the 1N5408 High-Power Rectifier Diode. This versatile component is ideal for applications demanding reliability and high current handling capabilities.

Key Features:

• Compact Design: Easy to integrate into your designs.
• High Voltage Rating: 1000V peak repetitive reverse voltage.
• Rugged Construction: Built to withstand demanding operating conditions.
• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.
• High Current Capability: 3A average rectified forward current, with peak surge currents up to 200A.

Applications:

• Inverters
• Power supplies
• DC-DC converters
• Motor control circuits
• General-purpose rectification

Specifications:

• Package: DO-201
• Type: Rectifier Diode
• Mounting: Through Hole
• Max. Reverse Current (Ir): 10µA
• Reverse Voltage (VRRM): 1000V
• Average Rectified Current (Io): 3A
• Reverse Recovery Time (Trr): 75ns
• Max. Forward Voltage Drop (Vf): 1V (at 3A)
• Operating Junction Temperature Range: -55°C to +150°C

DATA SHEET AND USECASE

Key Specifications:

• Maximum Average Forward Current (I_F(AV)): 3.0 amperes​
• Forward Voltage Drop (V_F): Typically 1.2 volts at 3.0 amperes​
• Maximum Repetitive Peak Reverse Voltage (V_RRM): 1000 volts​
• Reverse Recovery Time: Relatively slow, making it more suitable for low-frequency applications
