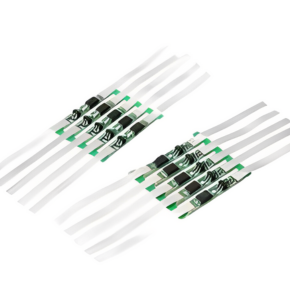

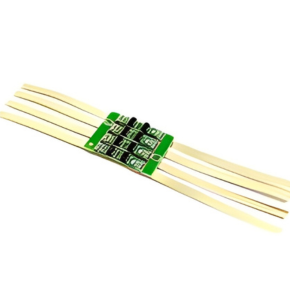

1S 2A BMS Board 3.7V 18650 Lithium Battery Protection Board with Nickel Plate pack-2

Description:

This 1S 2A BMS (Battery Management System) board is designed to protect a single 3.7V 18650 lithium-ion battery from overcharge, over-discharge, and overcurrent. It's a crucial component for ensuring the safe and reliable operation of battery-powered devices. The included nickel plate makes it easier to connect the BMS to the battery. This pack includes two boards.

Key Features:

• Overcharge Protection: Prevents the battery from being charged beyond its maximum voltage.
• Over-Discharge Protection: Prevents the battery from being discharged below its minimum voltage.
• Overcurrent Protection: Protects the battery and circuit from excessive current draw.
• Short Circuit Protection: Shuts down the output in case of a short circuit.
• Nickel Plate Included: Simplifies connection to the 18650 battery.
• Compact Size: Small form factor for easy integration into various devices.
• 1S Configuration: Specifically designed for a single-cell lithium-ion battery.
• 2A Continuous Current: Supports a maximum continuous discharge current of 2A.

Applications:

• Portable Power Banks: Protecting the battery in DIY power banks.
• LED Lights: Ensuring safe operation of battery-powered LED lights.
• Small Electronic Devices: Protecting batteries in portable speakers, toys, and other gadgets.
• DIY Projects: Integrating battery protection into custom electronic projects.

Specifications:

• Battery Type: 3.7V Lithium-ion 18650
• Cell Configuration: 1S
• Continuous Discharge Current: 2A
• Overcharge Detection Voltage: 4.2V ± 0.05V
• Over-Discharge Detection Voltage: 2.5V ± 0.1V
• Overcurrent Protection Current: 3A
• Short Circuit Protection: Yes
• Charging Voltage: 4.2V

DATA SHEET AND USECASE

Specifications:

• Charging Voltage: 4.2V

• Continuous Charging/Discharging Current: 2A

• Maximum Discharging Current: Up to 5A, depending on specific model and manufacturer.

• Dimensions: Approximately 30mm x 3.7mm x 2.2mm

• Weight: Around 10 grams
