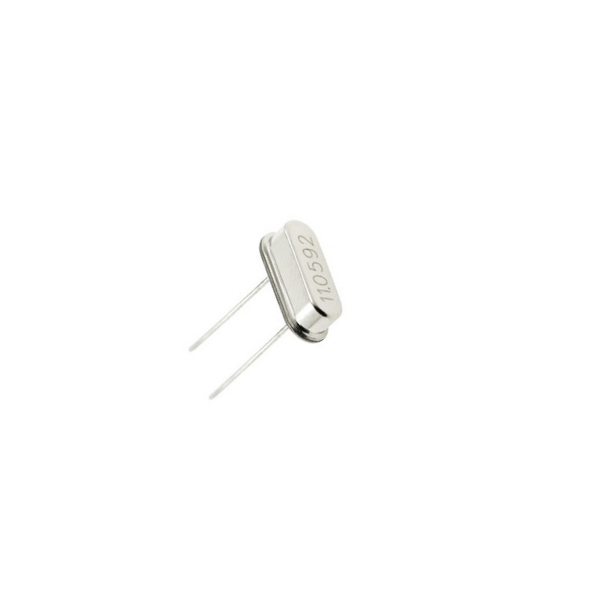

HC49/U 11.0592MHz Crystal Oscillator Pack 5

Description

This crystal oscillator pack contains five high-precision HC49/U crystal oscillators operating at a frequency of 11.0592MHz. These oscillators are commonly used in electronic circuits as a stable frequency reference for timing and synchronization.

Key Features

• HC49/U Package: A popular and widely used crystal oscillator package.
• 11.0592MHz Frequency: A common frequency used in various electronic applications.
• High Precision: Provides accurate frequency stability for reliable operation.
• Low Jitter: Minimizes timing variations for precise timing applications.
• Wide Operating Temperature Range: Suitable for various environmental conditions.
• 5-Pack: Convenient quantity for multiple projects or replacements.

Applications

11.0592MHz crystal oscillators are widely used in a variety of electronic devices and systems, including:

• Microcontrollers and Microprocessors: Providing a stable clock signal for accurate timing and control.
• Communication Systems: Ensuring precise synchronization in data transmission and reception.
• Frequency Counters: Measuring and displaying frequencies with high accuracy.
• Test Equipment: Used in oscilloscopes, signal generators, and other measurement instruments.
• Embedded Systems: Providing a reliable time reference for embedded applications.

DATA SHEET AND USECASE

Key Specifications:

• Nominal Frequency: 11.0592 MHz

• Frequency Tolerance: ±30 ppm (parts per million)

• Frequency Stability: ±50 ppm over the operating temperature range

• Load Capacitance: Typically 18 pF

• Operating Temperature Range: -20°C to +70°C

• Shunt Capacitance (C0): 7 pF maximum

• Drive Level: 100 µW typical

• Aging: ±5 ppm per year
