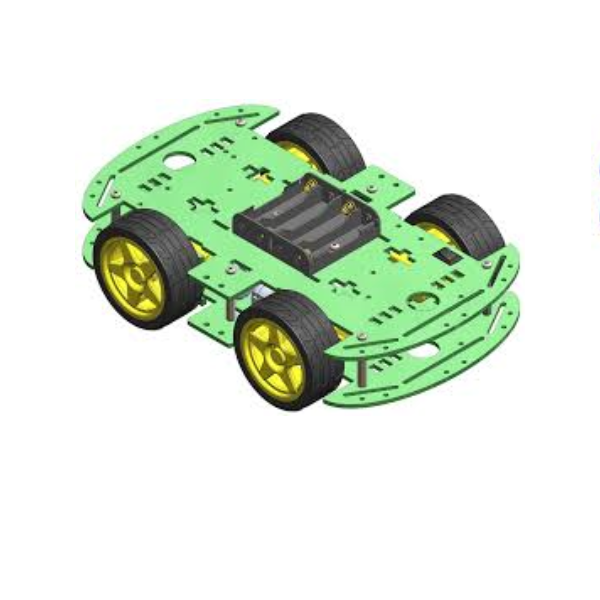

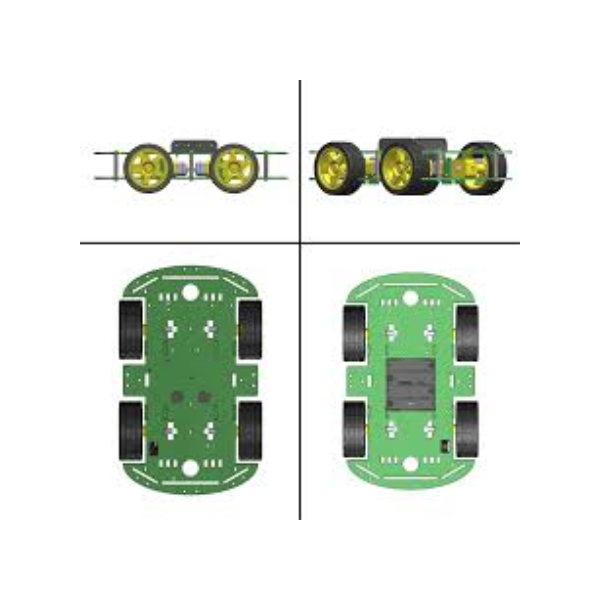

4WD Robotics Chassis With Motors Wheels And Accessories V1.0 (GREEN)

The 4WD Robotics Chassis With Motors Wheels And Accessories V1.0 (GREEN) is a versatile and customizable platform for building a wide range of robotic projects. It provides a sturdy foundation with essential components like four motors, wheels, and a battery holder, along with additional accessories to enhance functionality and creativity.

Key Features:

• 4-Wheel Drive: Offers excellent traction and maneuverability, making it suitable for various terrains and applications.
• Motors: Powerful motors deliver ample torque for driving the chassis and powering attachments, ensuring robust performance.
• Wheels: High-quality wheels with good grip and durability contribute to smooth and reliable operation.
• 18650 Battery Holder: Accommodates multiple 18650 batteries, providing ample power for extended runtime and flexibility in powering different components.
• Modular Design: Allows for easy customization and attachment of various sensors, actuators, and other components, enabling you to build robots tailored to specific tasks.
• Accessories: Includes additional components such as jumper wires, screws, nuts, and other useful items to support your robotic creations.
• Green Color: Adds a visually appealing element to the chassis, making it stand out and complement different project themes.

DATA SHEET AND USECASE

Datasheet and Specifications:

• Chassis Material: Laser-cut acrylic plates, typically 3mm thick, providing a sturdy and customizable base.
• Dimensions: Approximately 255mm in length, 150mm in width, and 80mm in height.
• Motors: Four DC gear motors with the following specifications:
  • Operating Voltage: 3V to 6V DC
  • No-load Speed: Approximately 208 RPM at 5V
  • Rated Torque: 0.8 kg·cm at 5V
  • Load Current: 170mA at 4.5V
• Wheels: Four wheels with a diameter of 65mm and a width of 27mm, featuring plastic rims and rubber tires for enhanced traction.
• Battery Holder: Accommodates four AA batteries (batteries not included).
• Additional Components: Includes mounting hardware such as screws, nuts, fasteners, and standoffs for assembly.
