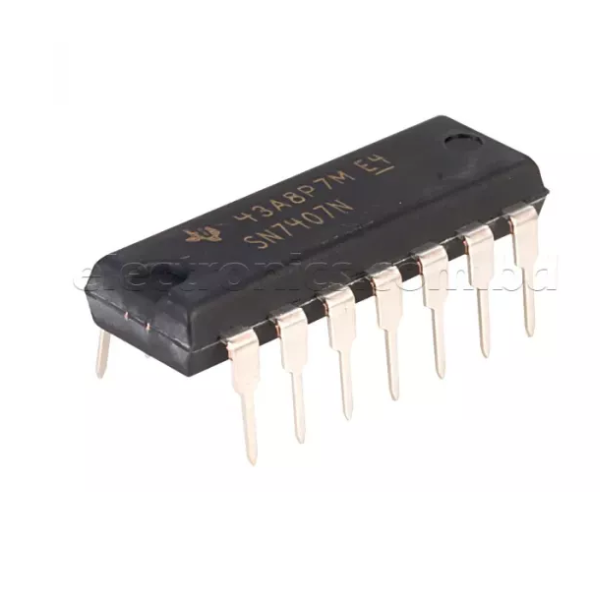

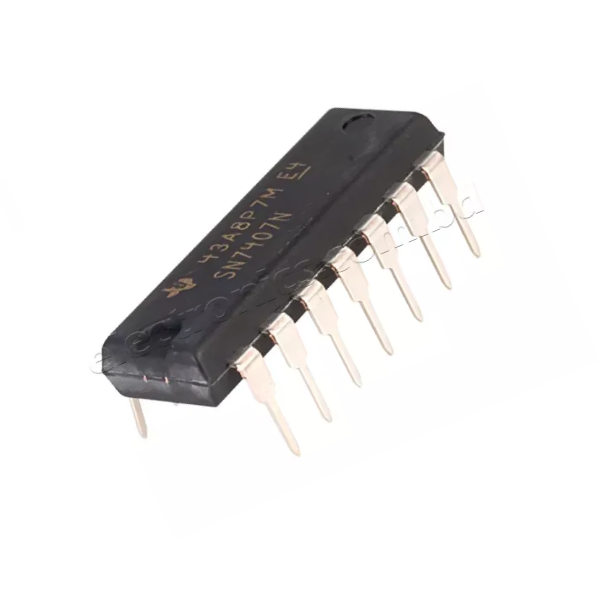

7407 / SN74HC07N HEX BUFFER IC Pack 5

7407/SN74HC07N Hex Buffer IC: A Versatile Digital Logic Component

The 7407/SN74HC07N is a hex buffer IC designed to provide six independent open-collector buffer gates, offering flexibility and versatility in various digital circuits.

Key Features:

• Six Independent Gates: Provides six separate buffer gates for a wide range of applications.
• Open Collector Outputs: Requires pull-up resistors to control output voltage levels, making it suitable for driving indicator lamps, relays, and other high-current loads.
• Input Clamping Diodes: Protects inputs from electrostatic discharge (ESD) damage.
• Standard TTL Switching Voltages: Compatible with standard TTL logic levels for easy integration.

Applications:

• Indicator Lamps: Drives various types of indicator lamps, including LEDs and incandescent bulbs.
• Relays: Controls relays for switching high-current loads.
• Digital Circuits: Used as buffers in digital circuits to isolate or amplify signals.
• General-Purpose Applications: Suitable for a wide range of electronic applications.

Specifications:

• Number of Gates: 6
• Output Type: Open collector
• Input Clamping Diodes: Built-in for ESD protection
• Switching Voltages: Standard TTL levels

DATA SHEET AND USECASE

Key Features:

• High-Voltage Open-Collector Outputs: Capable of interfacing with high-level circuits such as MOS or driving high-current loads like lamps or relays.

• Wide Operating Voltage Range: Typically operates with a supply voltage (Vcc) between 4.75V and 5.25V.

• High Sink Current Capability: Each output can sink up to 40 mA, suitable for driving heavier loads.
