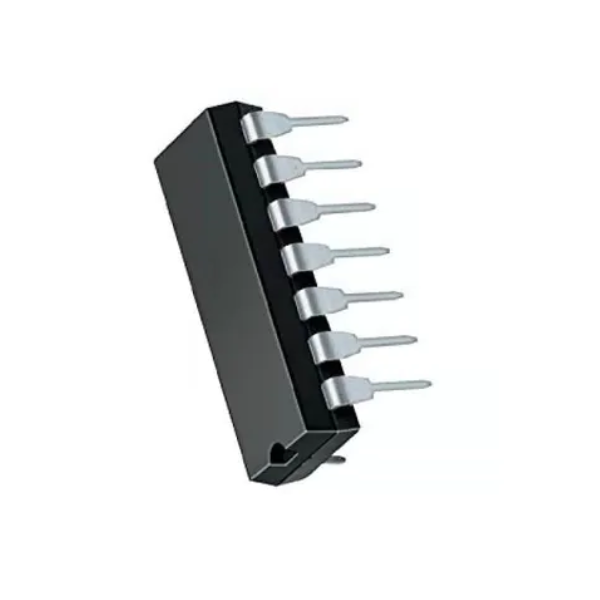

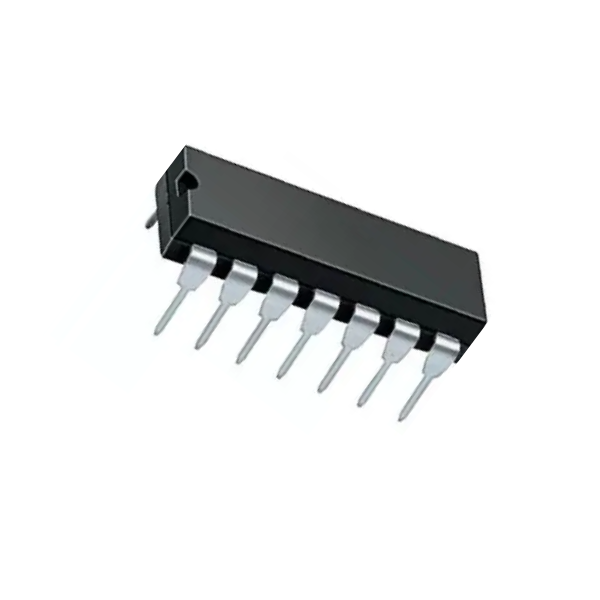

7408 Quad 2-Input AND Gate IC (DIP-14 Package)

The 7408 is a versatile and reliable integrated circuit (IC) designed to perform logical AND operations. It offers four independent 2-input AND gates, providing flexibility and efficiency for various digital applications.

Key Features:

• Quad 2-Input AND Gates: Provides four separate AND gates for parallel processing.
• Wide Supply Voltage Range: Operates from a wide range of supply voltages, ensuring compatibility with different power sources.
• Standard Push-Pull Outputs: Delivers standard push-pull outputs for easy interfacing with other digital circuits.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered or energy-efficient systems.
• High Noise Immunity: Offers excellent noise immunity for reliable operation in noisy environments.

Applications:

• Digital Logic Circuits: Used in various digital logic circuits for implementing AND operations and creating complex logic functions.
• Combinational Logic: Employed in combinational logic circuits, such as decoders, multiplexers, and adders.
• Sequential Logic: Integrated into sequential logic circuits, such as flip-flops and counters.
• Microcontrollers and Microprocessors: Used in microcontrollers and microprocessors for internal logic functions.

Specifications:

• Package: DIP-14
• Number of Gates: 4
• Input Type: 2-input
• Output Type: Push-pull
• Supply Voltage: 2.0V to 6.0V
• Operating Temperature: 0°C to 70°C

DATA SHEET AND USECASE

Features and Specifications:

• Supply Voltage (Vcc): Typically 4.75V to 5.25V
• Input Voltage (High): Minimum 2V
• Input Voltage (Low): Maximum 0.8V
• Output Voltage (High): Close to Vcc when output is high
• Output Voltage (Low): Close to 0V when output is low
• Operating Temperature Range: 0°C to 70°C
• Propagation Delay: Approximately 10-15 ns
• Power Dissipation: About 10-20 mW per gate
