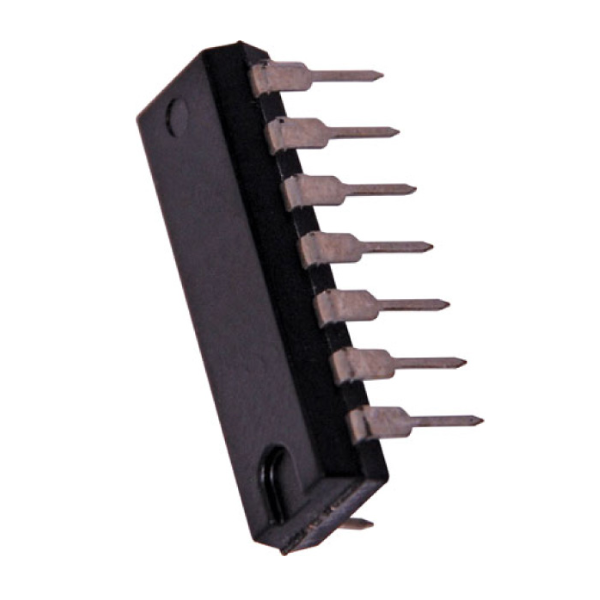

7432 OR Gate IC DIP Pack 2

(0 Reviews)
In stock

Category: IC

SKU: 2248


MRP Price:
₹50 66% OFF
Discounted Price:
₹18 (Pc)

Quantity:
(20 available)

Weight:
50 g

Total Price:
Bulk Order
Share:
Sold By
DSMElectro Solutions Private Limited
(1249 customer reviews)
7432 OR Gate IC: A Versatile Digital Logic Component
Description:

The 7432 is a quad 2-input OR gate integrated circuit (IC) packaged in a 14-pin dual in-line package (DIP). It provides four independent OR gates, each with two inputs and one output.

Key Features:
  • Quad 2-input OR gates: Offers four separate OR gate functions within a single IC.
  • Low power consumption: Designed for efficient power usage, making it suitable for battery-powered or energy-constrained applications.
  • Standard 7400 series: Part of the widely used 7400 series of TTL (Transistor-Transistor Logic) integrated circuits.
  • 14-pin DIP: Comes in a popular 14-pin DIP package, compatible with standard breadboards and sockets.
Applications:
  • Digital logic circuits: Used as basic building blocks in various digital circuits, such as combinational logic, sequential logic, and counters.
  • Boolean algebra implementation: Implements logical OR operations in digital systems.
  • Data selectors and multiplexers: Used in data selection and multiplexing circuits.
  • Arithmetic circuits: Employed in adders, subtractors, and other arithmetic operations.
  • Control logic: Utilized in control systems for decision-making and signal routing.
Specifications:
  • Supply voltage: 4.5V to 5.5V
  • Output current: 32mA (typical)
  • Input current: 1.6mA (typical)
  • Propagation delay: 12ns (typical)
  • Operating temperature: -55°C to 125°C
  • Package: 14-pin DIP

DATA SHEET AND USECASE

Key Features:

  • Logic Function: Each of the four gates performs a standard OR operation, outputting a high signal (1) when at least one of its two inputs is high.

  • Voltage Supply: Typically operates at a supply voltage of 5V, but can function within a range of 4.75V to 5.25V.

  • Propagation Delay: The time taken for an input change to affect the output is approximately 10 nanoseconds.

  • Operating Temperature: Suitable for use in environments ranging from 0°C to 70°C.
