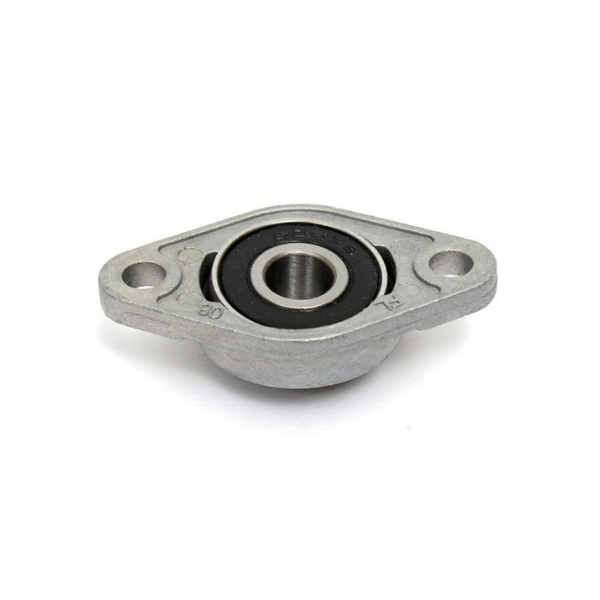

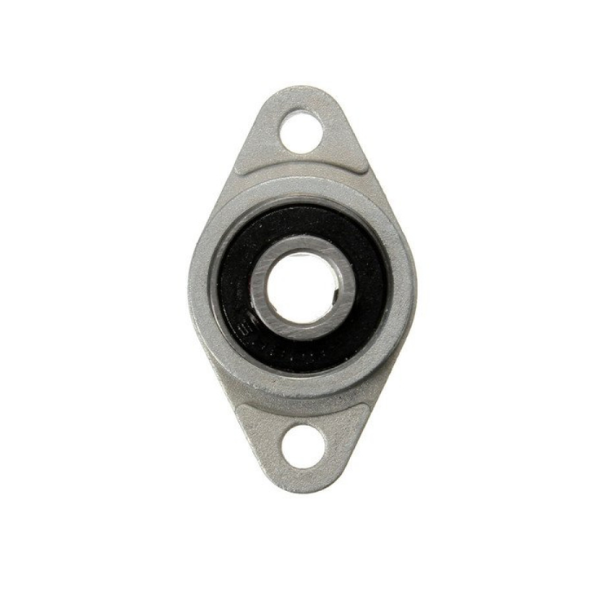

8mm Inner Diameter Zinc Alloy Pillow Block Flange Bearing KFL08

Description:

The KFL08 is a compact and durable bearing block designed to support and guide linear motion shafts, leadscrews, or ball screws. It features a zinc alloy housing that encloses a high-quality 608 ball bearing. The flange design allows for easy mounting and secure fixation to various surfaces.

Applications:

• 3D Printers: Supports the movement of print heads and other components.
• CNC Machines: Provides smooth and precise linear motion for machine tools.
• Robotics: Used in robotic arms and other robotic mechanisms.
• DIY Machines: Ideal for home-built machines and projects.
• Industrial Machinery: Supports various linear motion applications in industrial settings.

Key Features:

• Compact Design: Small footprint for space-constrained applications.
• Durable Construction: Zinc alloy housing for long-lasting performance.
• High-Quality Bearing: Ensures smooth and low-friction operation.
• Easy Mounting: Flange design for simple installation.
• Versatile Application: Suitable for a wide range of linear motion systems.

DATA SHEET AND USECASE

Key Specifications:

• Model Number: KFL08
• Material: Zinc-Aluminum Alloy
• Inner Diameter (Bore): 8mm
• Bearing Outer Diameter: 20mm
• Bearing Width: 10mm
• Overall Length: 45mm
• Overall Width: 25mm
• Overall Height: 12mm
• Mounting Hole Diameter: 5mm
• Mounting Hole Center Distance: 36mm
• Weight: Approximately 27 grams
