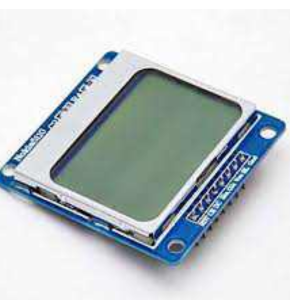

Nokia 5110 Lcd Module Backlight 84x48

Sold By

DSM Online

(15 customer reviews)

Top Selling Products

Relay Module 5V 8 Channel

34% OFF

~~₹549~~ ₹365
Bluetooth HC-05 Wireless UART Module

55% OFF

~~₹599~~ ₹273
Programmable Robot Leju Humanoid Robot Aelos Pro Version With Remote Control D / A AL-PRO-E1E + Control

20% OFF

~~₹250,000~~ ₹200,001
Arduino Uno R3 board

23% OFF

~~₹999~~ ₹766
Arduino Mega 2560 R3

28% OFF

~~₹2,299~~ ₹1,651
Lilypad 328 ATMEGA 328P Main Board Compatible with Arduino

46% OFF

~~₹799~~ ₹435
TP4056 1A Lithium Battery Charger C Type Module

66% OFF

~~₹99~~ ₹34
Teensy 3.2 Development Board

20% OFF

~~₹3,500~~ ₹2,800

Description Reviews

1) 84 X 84 dot matrix LCD, can show 4 lines of characters

2) Support different types of MCU, such as the arduino, AVR, SPI, MCS51 and so on

3) Transfer rate up to 4Mbps, can full speed write display data without waiting time

4) Low power supply, the working current in normal situation is lower than 200µA,and has power-down mode

Description:

This is a monochrome lcd module comprised of 84x48 pixels that can be used to display rich graphic and text content. Though it's an industrial module, this lcd display is extremely easy to use. This module is a revision that accepts 3-5v input. So no extra level shifter is needed. To have full control, you just need 5 pins. and as a classic display module among open source communities.

Features:

84 X 84 dot matrix LCD, can show 4 lines of characters

Use serial interface communicate with the master processor, the number of interface signal line reduced greatly, only 8 signal lines including power and GND.

Support different types of MCU, such as the arduino, AVR, SPI, MCS51 and so on.

Transfer rate up to 4Mbps, can full speed write display data without waiting time.

Can use the conductive glue to connect the module with the printed board, without cables. The metal hooks on the module can fix the module on the printed board, which is very easy to install and replace.

Low power supply, the working current in normal situation is lower than 200µA,and has power-down mode

Download
