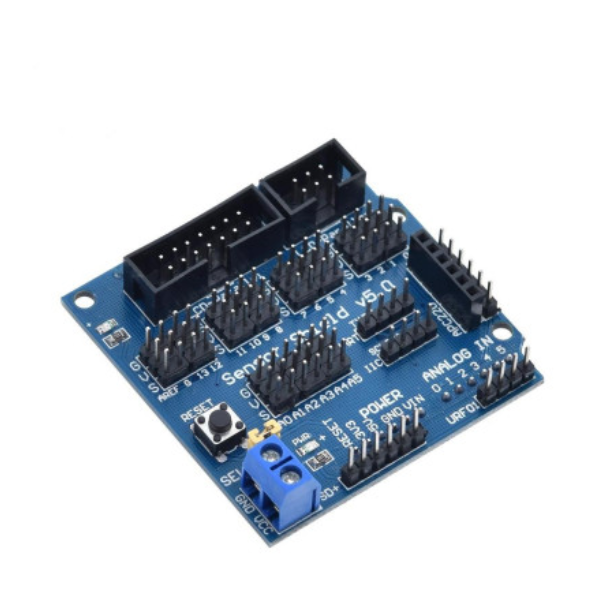

Arduino Sensor Shield V5 Expansion Board

Arduino Sensor Shield V5 Expansion Board

Description:

The Arduino Sensor Shield V5 Expansion Board is a versatile add-on for your Arduino microcontroller, designed to simplify the process of connecting and controlling various sensors, actuators, and other electronic components. It provides a convenient platform with pre-wired connections and labeled interfaces, making it easier to experiment and build a wide range of projects.

Key Features:

• Multiple Interfaces: Supports various communication protocols like I2C, SPI, and UART, allowing you to connect a variety of sensors and modules.
• Sensor Compatibility: Compatible with a wide range of sensors, including temperature, humidity, light, pressure, gas, and more.
• Actuator Control: Provides interfaces for controlling motors, servos, relays, and other actuators.
• Expansion Capabilities: Offers additional expansion headers for further customization and integration with other modules.
• Power Supply: Provides regulated power supply for your Arduino and connected components.
• User-Friendly Design: Clear labeling and color-coded connections make it easy to use and understand.

Specifications:

• Dimensions: 57 x 57 x 19mm / 2.2″ x 2.2″ x 0.7″
• Material: Metal
• Interfaces: I2C, SPI, UART, PWM, analog, digital
• Power Supply: Regulated 5V
• Expansion Headers: Multiple for additional modules

DATA SHEET AND USECASE

Key Features:

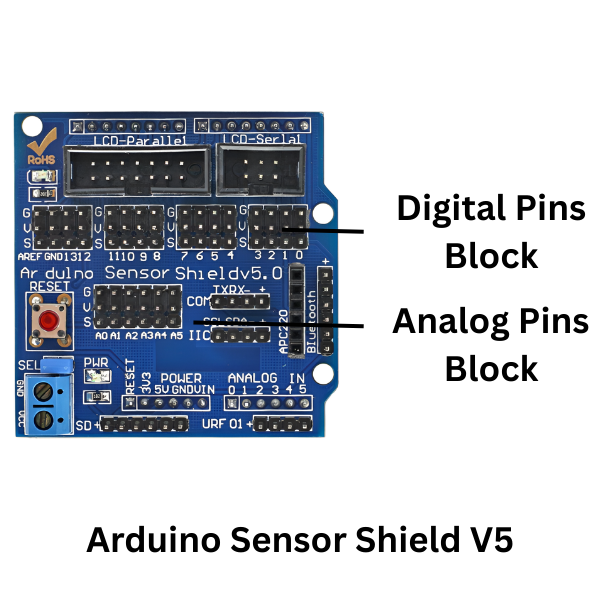

• Digital and Analog I/O Access: Breaks out all digital (D0-D13) and analog (A0-A5) pins of the Arduino into 3-pin headers (Signal, VCC, GND), facilitating easy connections without the need for soldering or complex wiring.

• Dedicated Interfaces:

  • I2C Interface: For connecting I2C devices like OLED displays and sensors.
  • UART Interface: For serial communication modules such as Bluetooth.
  • SD Card Module Interface: Allows for data logging and storage applications.
  • Bluetooth Module Interface: Enables wireless communication capabilities.
  • APC220 Wireless RF Module Interface: Supports RF communication modules.
  • RB URF v1.1 Ultrasonic Sensor Interface: Simplifies connection to ultrasonic distance sensors.
  • 12864 LCD Parallel and Serial Interfaces: Facilitates the connection of LCD displays for visual output.

• Servo Motor Support: Provides up to 32 channels for servo motor connections, making it ideal for robotics and automation projects.

• External Power Support: Includes a power input terminal and a jumper to select between internal (from the Arduino) and external power sources, ensuring adequate power supply for connected devices, especially servos and motors
