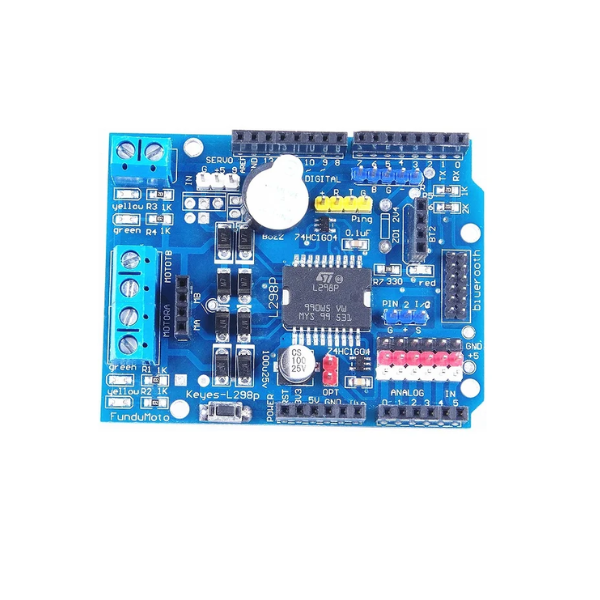

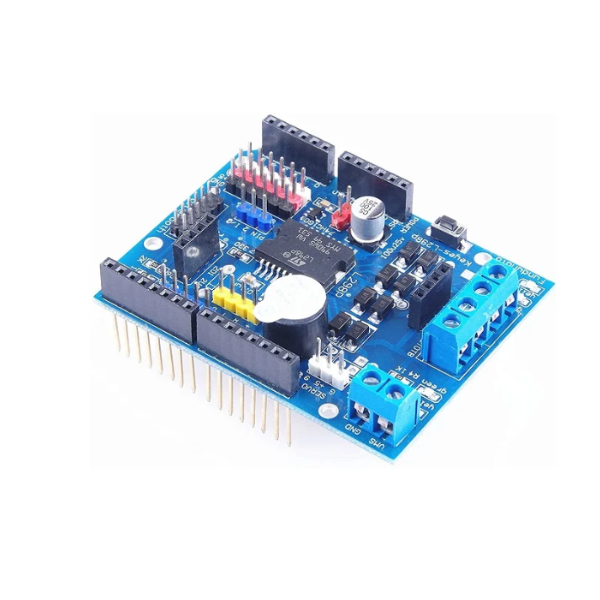

L298P Motor Driver Shield for Arduino

Description:

The L298P Motor Driver Shield is a versatile electronic board designed to control the speed and direction of DC motors or stepper motors. It's a popular choice among Arduino enthusiasts and professionals due to its ease of use and powerful capabilities.

Key Features:

• Dual H-Bridge: Provides independent control over two DC motors or a single stepper motor.
• High Current Capacity: Can drive motors up to 3A per channel, making it suitable for various applications.
• Direction Control: Easily reverse the direction of each motor using digital inputs.
• PWM Speed Control: Achieve precise speed control by modulating the pulse-width modulation (PWM) signal to the motors.
• Thermal Shutdown Protection: Protects against overheating to prevent damage.
• Breadboard-Friendly: Features a breadboard area for easy prototyping and experimentation.

Applications:

• Robotics: Controlling the movement of robot arms, wheels, or tracks.
• Line Following Robots: Guiding robots along predefined paths.
• Autonomous Vehicles: Powering motors for self-driving vehicles.
• Industrial Automation: Controlling machinery and equipment.
• Hobby Projects: Driving motors in various creative projects.
