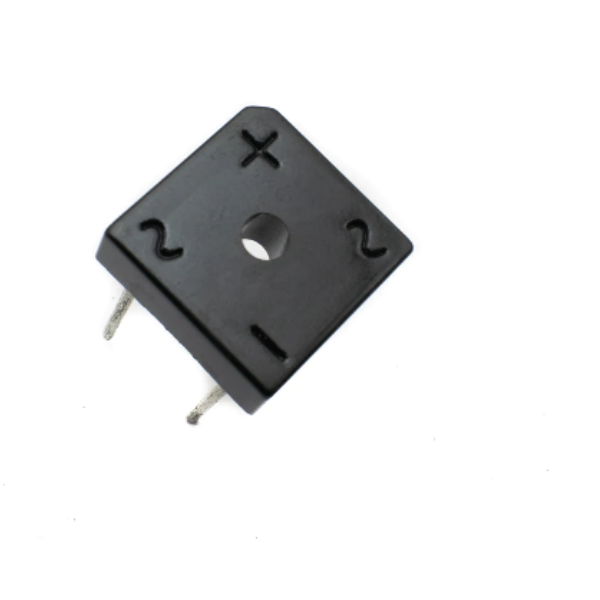

BR1010 10A 1000V Single-Phase Silicon Bridge Rectifier

BR1010: A Powerful and Efficient Single-Phase Bridge Rectifier

The BR1010 is a high-performance bridge rectifier designed for single-phase applications. With its robust construction and exceptional capabilities, it's a reliable choice for a wide range of electronic circuits.

Key Features:

• High Surge Current Capability: Handles up to 200A of surge current, ensuring reliable operation in demanding conditions.
• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High Voltage Rating: Can withstand up to 1000V reverse breakdown voltage, making it suitable for various applications.
• Compact Design: Offers a small footprint for easy integration into your circuits.

Applications:

• Power Supplies: Used in various power supply circuits to convert AC to DC.
• Inverters: Employed in inverters to convert DC to AC.
• Chargers: Used in battery chargers to regulate charging current.
• Industrial Control: Integrated into industrial control systems for power conversion and regulation.

Specifications:

• Maximum Input AC RMS Voltage: 700V
• Maximum DC Current: 10A
• Reverse Breakdown Voltage: 1000V
• Forward Voltage Drop: 1.1V
• Surge Current Capability: 200A
