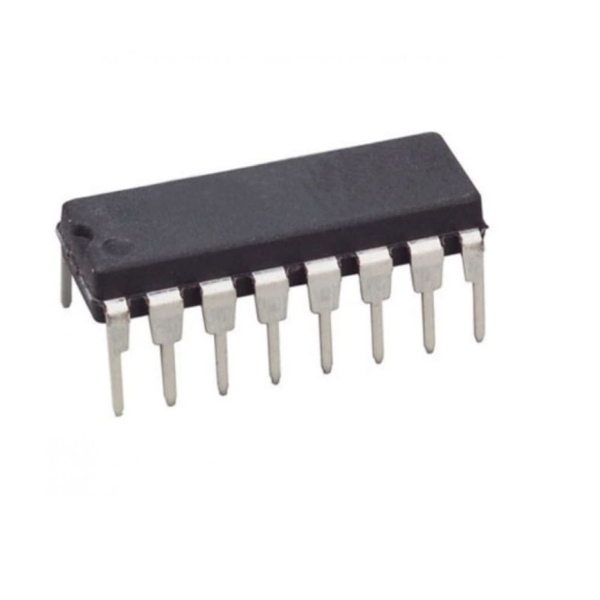

CD4017 Decade Counter IC DIP-16 PACK 5

Description:

The CD4017 is a versatile integrated circuit (IC) that functions as a decade counter. It's designed to count up to 10 states, making it suitable for various applications in digital electronics. This specific product comes in a pack of 5, offering a convenient quantity for projects or prototyping.

Key Features:

• Decade Counting: Counts from 0 to 9, providing 10 distinct output states.
• 10 Decoded Outputs: Each count state activates a specific output pin, simplifying circuit design.
• Single Clock Input: Requires only one clock signal for operation.
• Reset Input: Allows for resetting the counter to its initial state.
• Carry Output: Indicates when the counter has reached its maximum count (9).
• Wide Supply Voltage Range: Operates with supply voltages from 3V to 15V, providing flexibility in power supply options.
• Low Power Consumption: Consumes minimal power, making it energy-efficient.
• CMOS Technology: Offers high noise immunity and low power dissipation.

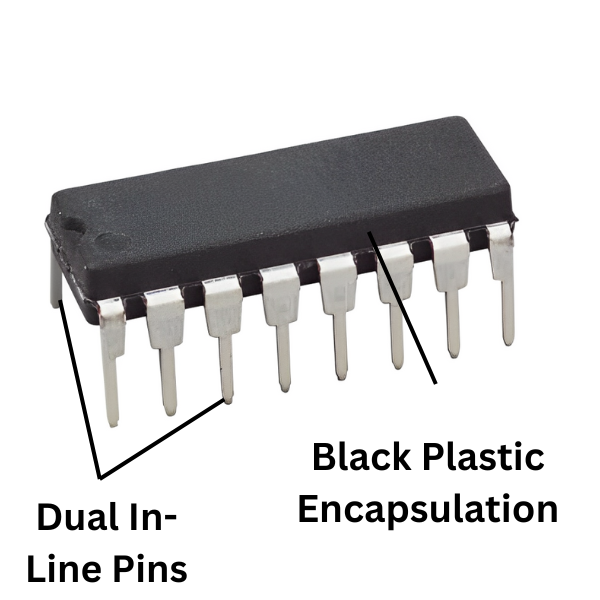

• DIP-16 Package: Standard 16-pin dual-in-line package for easy breadboarding and integration.

Specifications:

• Type: Decade Counter
• Package: DIP-16
• Supply Voltage (Vcc): 3V to 15V
• Clock Frequency: Typically up to 5 MHz
• Output Current: +/- 1.5 mA
• Power Consumption: Low power consumption
• Operating Temperature: -40°C to +85°C (typical)
