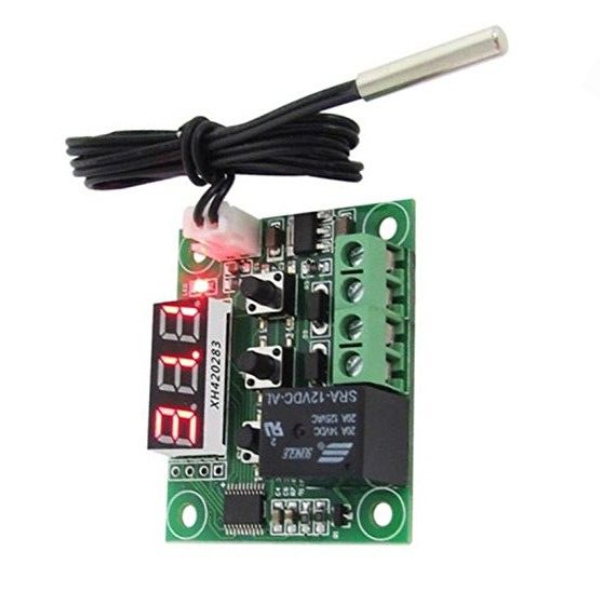

Digital Thermostat Temperature Controller W1209

W1209 High-Precision Digital Thermostat Incubator Temperature Controller

This high-precision temperature control module is a versatile tool that can show you the current temperature and control various power equipment through its relay. It's widely used in industrial and DIY applications, and it comes with a temperature sensor, three buttons for temperature setting, three digital temperature displays, and a program update interface for easy customization.

Key Features:

• Precision and Efficiency: The W1209 boasts a high-precision temperature control of ±0.1°C, ensuring accurate temperature regulation. The embedded MCU enhances intelligence and lowers power consumption, making it a more efficient device.
• Reliability and Durability: The 100% complete machine patch and wave soldering process guarantee stable performance and consistency. The built-in EEPROM storage unit provides automatic memory settings for power failures, preventing data loss.
• Versatility: The W1209 can control various power equipment through its relay, making it suitable for industrial and DIY applications. It includes a temperature sensor, three buttons for temperature setting, and a digital temperature display.
• User-Friendly: The device offers a program update interface for easy customization and maintenance.

Specifications:

• Temperature control range: -50 ℃ -110 ℃
• Temperature measurement accuracy: 0.1 ℃
• Temperature input: NTC (10K 0.5%) waterproof temperature sensor
• Temperature input: one channel 20A relay
• Backlash accuracy: 0.1 ℃
• High-temperature protection: 0-110 ℃
• Input voltage: DC12V
• Refresh rate: 0.5s
• Display Type: three red 0.28-inch digital tube
• Dimensions: 49mm x 40mm x 15.8mm (L * W * H)

Package Includes:

• 1 X W1209 High-precision Digital Thermostat Incubator Temperature Controller
• 1 X Waterproof temperature sensor

DATA SHEET AND USECASE

Key Features:

• Temperature Control Range: -50°C to 110°C
• Measurement Resolution:
  • 0.1°C for temperatures between -9.9°C to 99.9°C
  • 1°C for temperatures outside this range
• Measurement Accuracy: ±0.1°C
• Control Accuracy: ±0.1°C
• Refresh Rate: 0.5 seconds
• Input Power: DC 12V
• Output: One-channel relay output, rated up to 20A
• Sensor: NTC (10K 0.5%) waterproof sensor with a 0.5-meter cable
• Module Dimensions: 48mm x 40mm x 14mm
