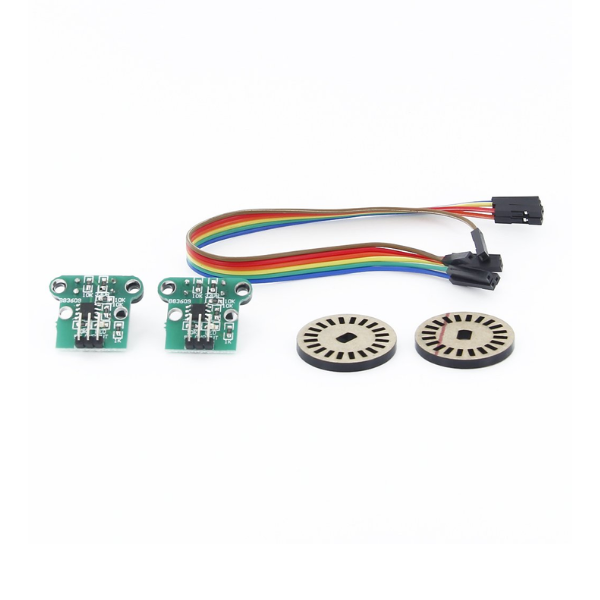

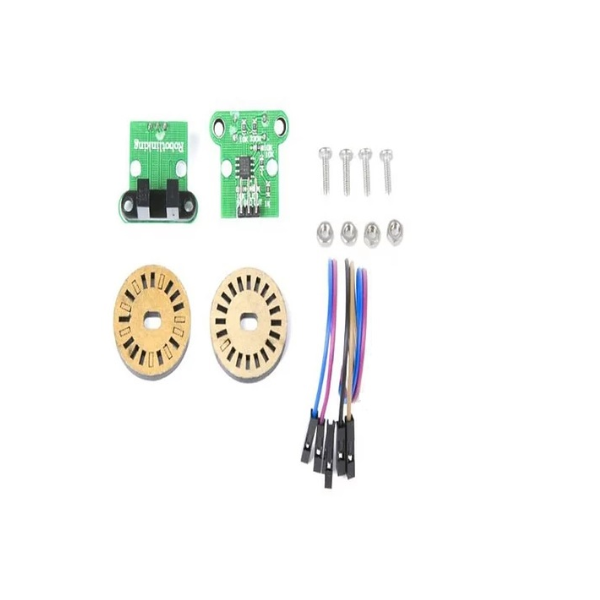

Double speed measuring module encoder photoelectric pulse output module

The double speed measuring module encoder photoelectric is a precision electronic device used to accurately measure rotational speed or linear displacement. It employs photoelectric technology to detect changes in light intensity, which are then converted into electrical signals representing the measured quantity.

Key Features:

• Photoelectric Technology: Utilizes light sensors to detect changes in light intensity.
• Double Speed Measurement: Capable of measuring both rotational speed and linear displacement.
• High Accuracy: Provides precise measurements with minimal error.
• Wide Range: Can measure a wide range of speeds or displacements.
• Durability: Designed for long-term use in various environments.
• Easy Installation: Typically comes with mounting brackets and connectors for easy installation.

Applications:

• Industrial Automation: Used in machinery and equipment to measure speed, position, and distance.
• Robotics: Measures the movement of robotic arms and other mechanical components.
• Medical Equipment: Used in medical devices that require precise measurements, such as pacemakers and rehabilitation equipment.
• Scientific Research: Used in research laboratories for various experiments and measurements.
• Automotive Industry: Used in cars and other vehicles to measure speed, distance, and engine performance.

Specifications:

• Output: Usually provides a pulse signal proportional to the measured speed or displacement.
• Resolution: The smallest measurable change in speed or displacement.
• Operating Voltage: Typically 5V or 12V DC.
• Output Frequency: Depends on the measured speed or displacement and the resolution of the encoder.
• Mounting Type: Usually comes with mounting brackets or flanges for easy installation.

DATA SHEET AND USECASE

Key Specifications:

• Working Voltage: 4.5V to 5.5V
• Transmit Tube Pressure Drop: Vf = 1.6V
• Transmit Tube Current: <20 mA
• Signal Output: Two channels (A and B) with TTL level
• Resolution: 0.01 mm
• Measurement Frequency: Up to 100 kHz
• Encoder Disc Diameter: 24 mm
• Inner Disc Diameter: 4 mm (D-type)
• Encoder Resolution: Approximately 20 lines
